Clutch Pressure Sensor Calibration

WARNING: This page is about a different variant/trim than selected.

NOTE: HCU need to be learnt the kissing point at both ends of the clutch to reduce shock while engine power is connected to the transaxle. So perform the Clutch Pressure Sensor Calibration after installing the CPS, HCU, engine or hybrid drive motor.

[Condition]

Hybrid Motor and HSG Resolver Calibration: "Completed" state
"READY" Lamp ON
"P" Range
Oil Temperature: 30 ~ 120°C (86 ~ 248°F)
SOC: 35 ~ 80%
No DTC

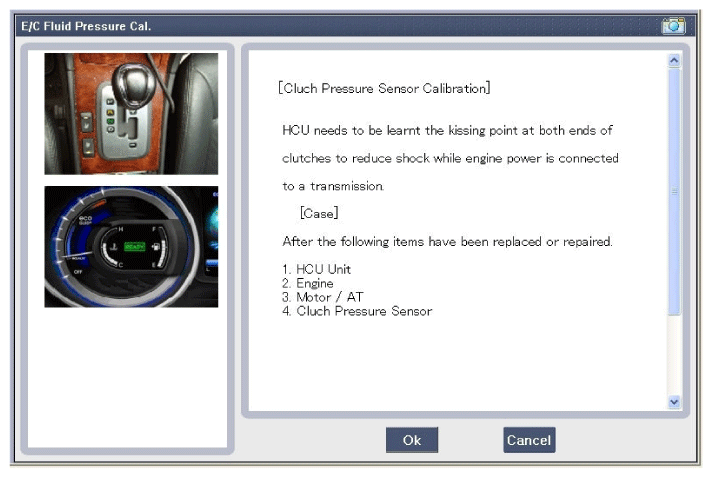

Fig 1: Screen Display - Clutch Pressure Sensor Calibration Setup (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

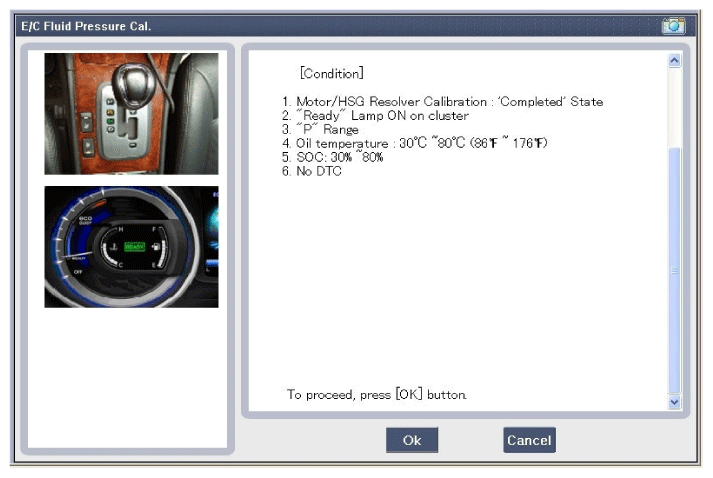

Fig 2: Screen Display - Clutch Pressure Sensor Calibration Set Conditions (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

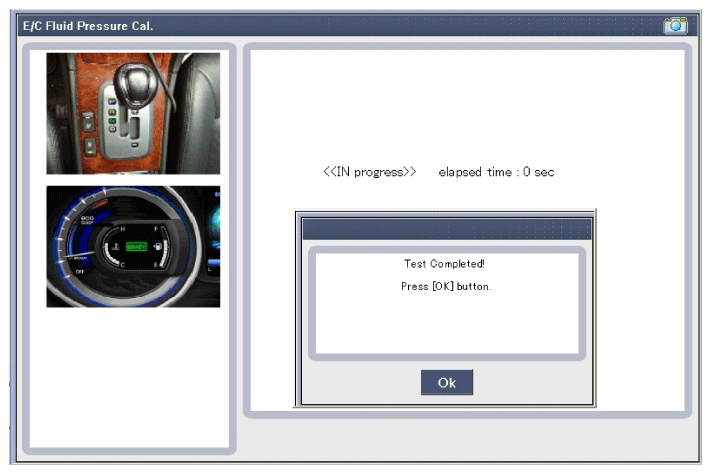

Fig 3: Screen Display - Clutch Pressure Sensor Calibration Test Completed (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
