Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

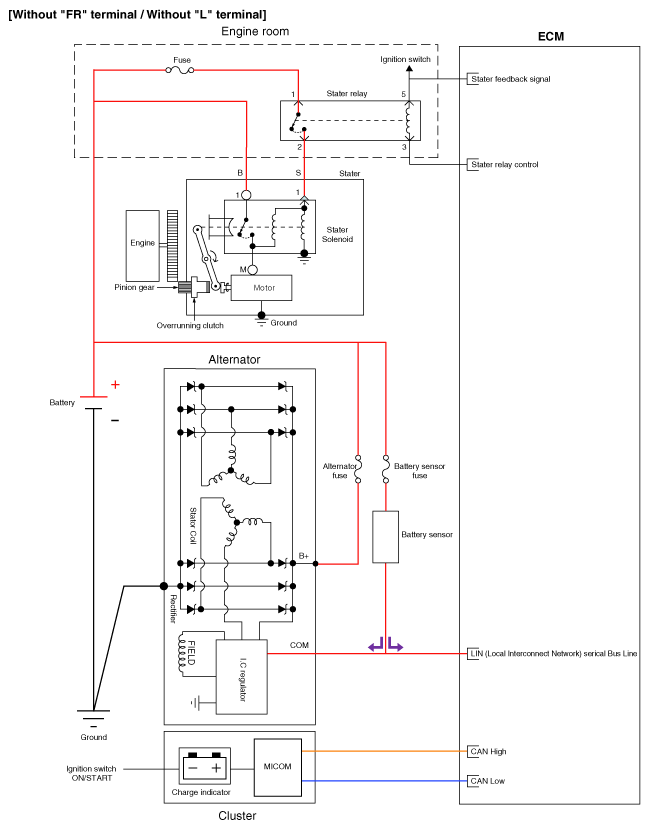

Fig 1: Charging System Circuit (Without FR Terminal / Without L Terminal)

Courtesy of KIA MOTORS AMERICA, INC.

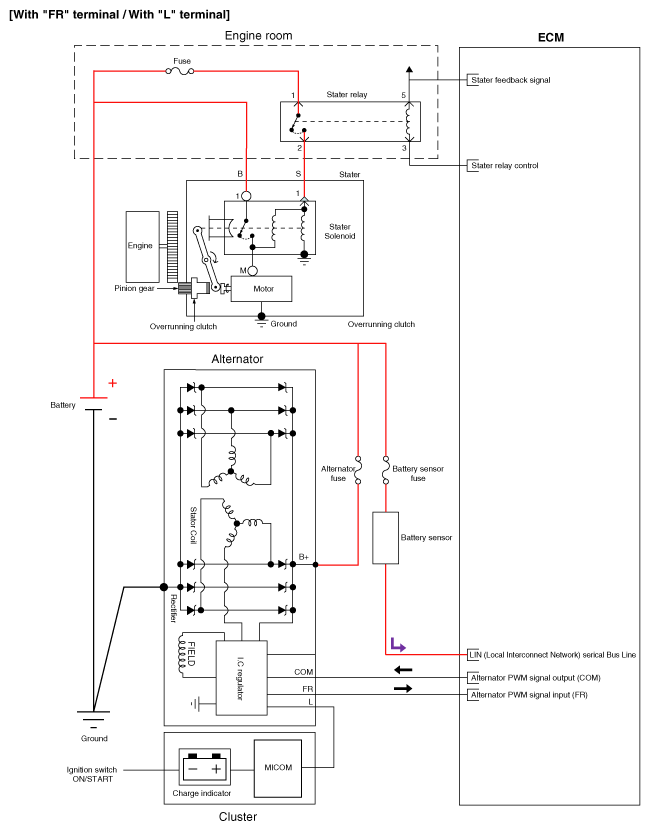

Fig 2: Charging System Circuit (With FR Terminal / With L Terminal)

Courtesy of KIA MOTORS AMERICA, INC.

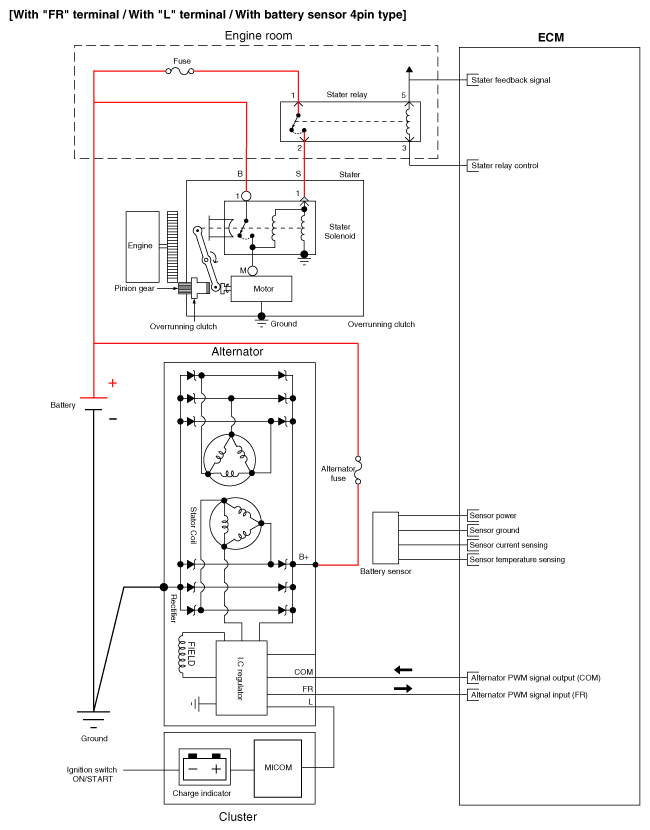

Fig 3: Charging System Circuit (With FR Terminal / With L Terminal / With Battery Sensor 4 Pin Type)

Courtesy of KIA MOTORS AMERICA, INC.
