Battery Tray

WARNING: This page is about a different variant/trim than selected.

Remove the battery.
(Reter to Engine Electrical System - "BATTERY ")
Remove the air cleaner mounting bolt and nut (A).

Fig 1: Locating Air Cleaner Mounting Bolt And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery tray (A) after loosening the mounting bolts.
Battery tray mounting bolt:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.4 - 21.7 lb.ft)

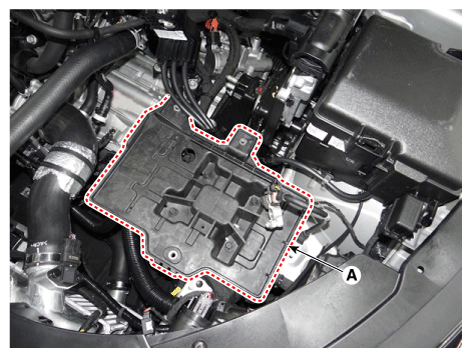

Fig 2: Locating Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.
