Alternator Brace Bracket Assembly

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

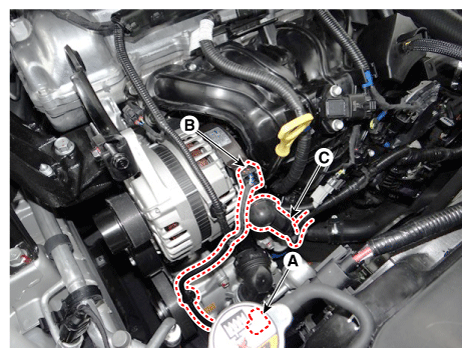

Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).
Alternator "B" terminal mounting nut:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 1: Locating Air Compressor Connector And Alternator Connector
Courtesy of KIA MOTORS AMERICA, INC.

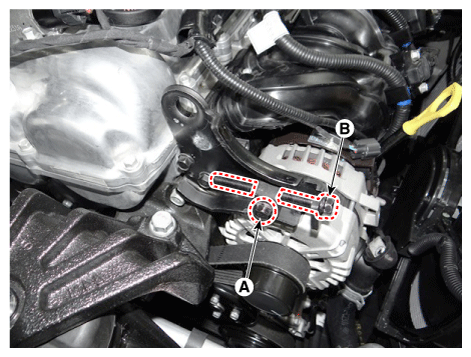

Loose the alternator by loosening the mounting lower bolt (A) lightly, not completely, to remove the drive belt.

Fig 2: Locating Alternator Lower Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

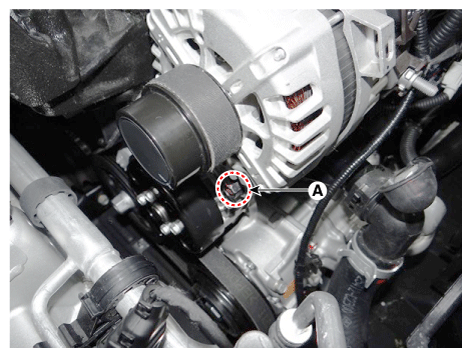

Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise to loosen tension.
Alternator mounting upper bolt:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

Fig 3: Locating Mounting Bolts And Adjusting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

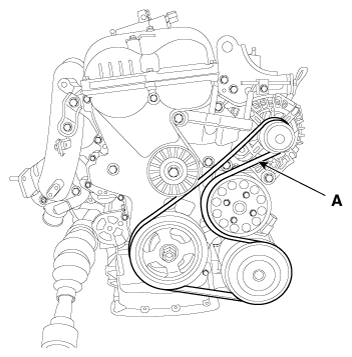

Remove the drive belt (A).

Fig 4: Locating Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.

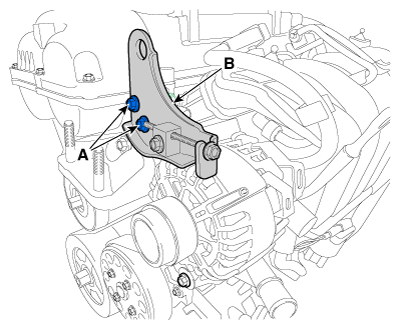

Remove the alternator brace bracket assembly (B) after loosening the mounting bolt (A).
Alternator brace bracket assembly mounting bolt:

24.3 - 26.9 N.m (2.48 - 2.74 kgf.m, 17.9 - 19.8 lb.ft)

Fig 5: Locating Alternator Brace Bracket Assembly And Mounting Bolt

Courtesy of KIA MOTORS AMERICA, INC.
