Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the alternator.
(Refer to Charging System - "ALTERNATOR ")

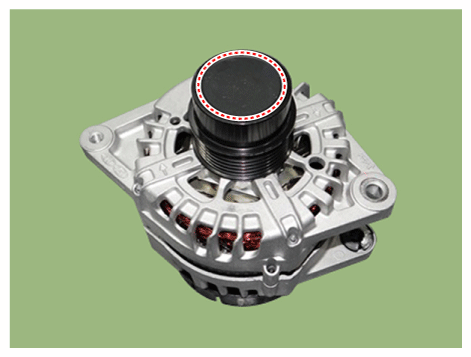

Remove the OAD (Overrunning Alternator Decoupler) cap (A).

Fig 1: Locating Overrunning Alternator Decoupler Cap
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When installing, replace with new OAD cap.

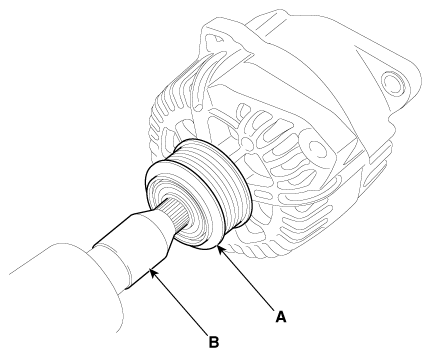

Remove the OAD (Overrunning Alternator Decoupler) pulley (A) using the special tool.

Fig 2: Removing OAD Pulley Using Special Tool
Courtesy of KIA MOTORS AMERICA, INC.

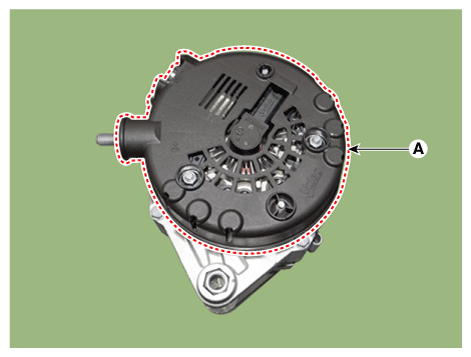

Remove the rear cover (A) after removing nuts.

Fig 3: Locating Rear Cover
Courtesy of KIA MOTORS AMERICA, INC.

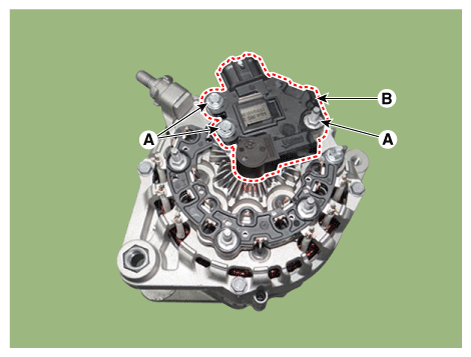

Remove the mounting bolts (A) and the regulator assembly (B).

Fig 4: Locating Regulator Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

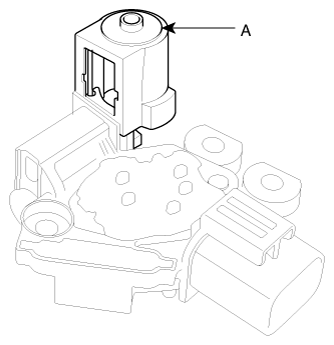

Remove the slip ring guide (A) after pulling it.

Fig 5: Locating Slip Ring Guide
Courtesy of KIA MOTORS AMERICA, INC.

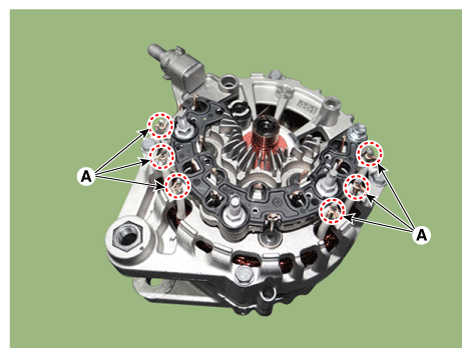

Unsolder the 3 stator leads (A).

Fig 6: Locating Stator Leads
Courtesy of KIA MOTORS AMERICA, INC.

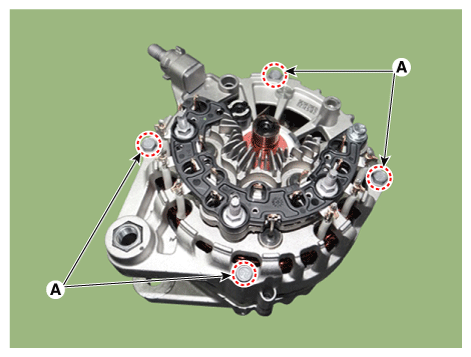

Remove the 4 through bolts (A).

Fig 7: Locating 4 Through Bolts
Courtesy of KIA MOTORS AMERICA, INC.

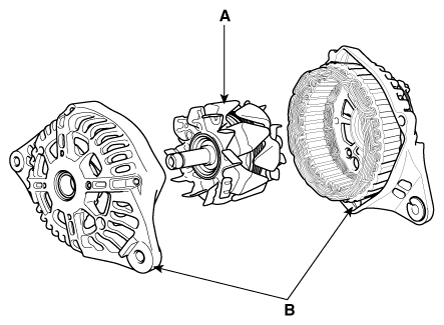

Disconnect the rotor (A) and bracket (B).

Fig 8: Locating Rotor And Bracket

Courtesy of KIA MOTORS AMERICA, INC.
