System Inspection

■ Visual Check

1. Need to inspect visually/physically the following items:
   • Vacuum line leakage
   • Intake air leak after throttle body
   • Damaged PCSV
   • Damaged ETC
   • Sludged throttle body
2. Have any problems been found?

   YES

   • Repair as necessary and go to "Resetting Adaptive Values" procedure below.

   NO

   • Clear DTC and Test-drive under enable conditions above-mentioned. After the test, If this DTC is set, go to "Resetting Adaptive Values" procedure. If not, troubleshooting is completed.

■ Resetting Adaptive Values

1. Connect KDS/GDS to DLC (Data Link Cable).
2. Ignition "ON" & ENG "OFF"
3. Select the "Vehicle S/W Management" about related DTC with KDS/GDS.

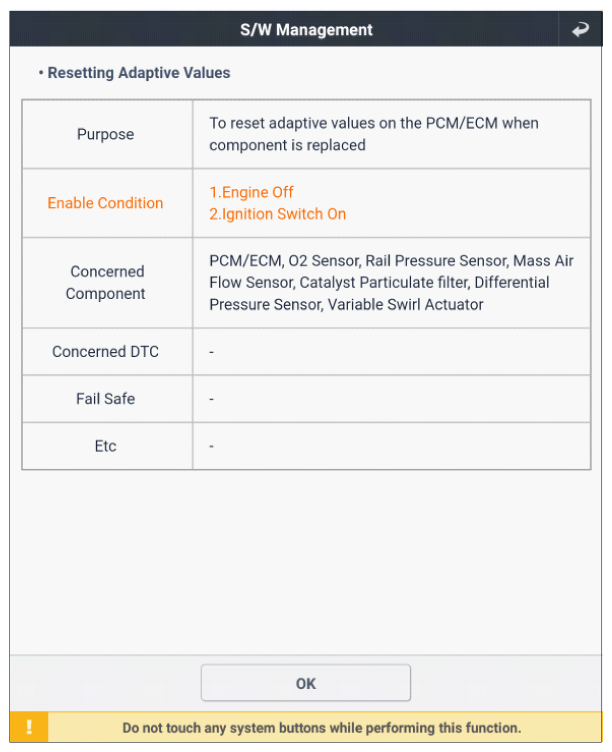

   Fig 1: Display - Resetting Adaptive Values Screen

   Courtesy of KIA MOTORS AMERICA, INC.

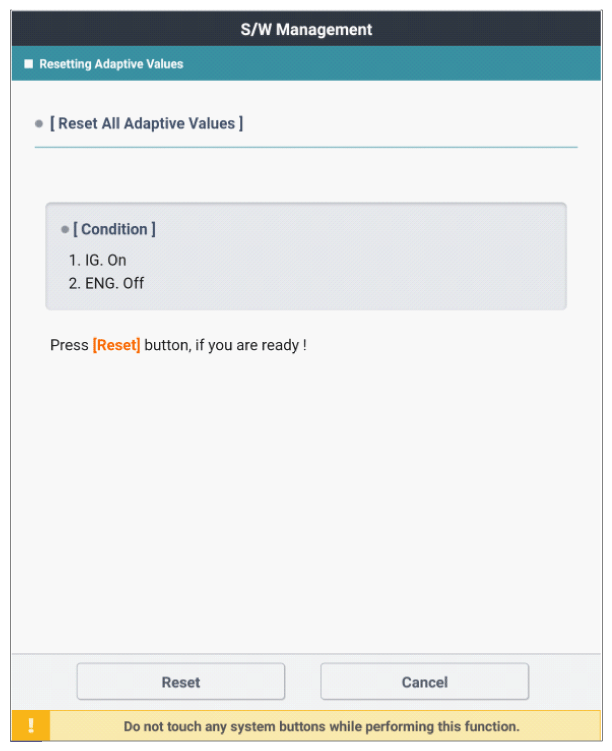

   Fig 2: Display - Pressing Reset Button Screen

   Courtesy of KIA MOTORS AMERICA, INC.

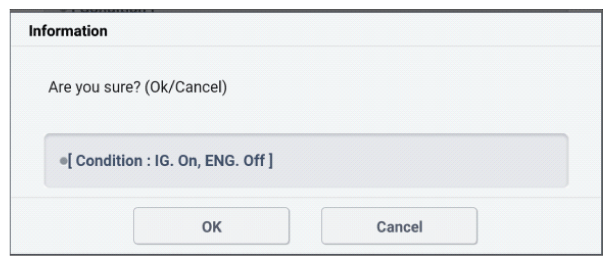

   Fig 3: Display - Pressing OK Button Screen (IG ON/ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Display - Message Completion Screen

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
