Signal Waveform & Data

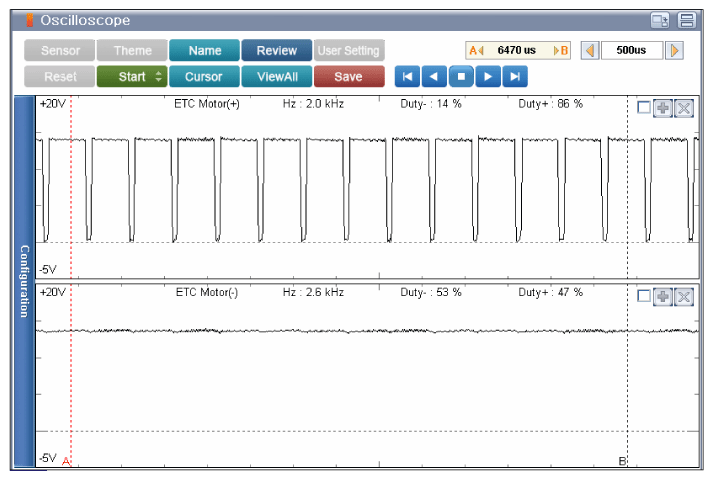

Fig 1: Display - Engine Idle After Warm Up Screen

Courtesy of KIA MOTORS AMERICA, INC.

ETC Motor (+) → Duty (+) Approx. 86%

Duty (-) Approx. 14%

ETC Motor (-) → Not in Control

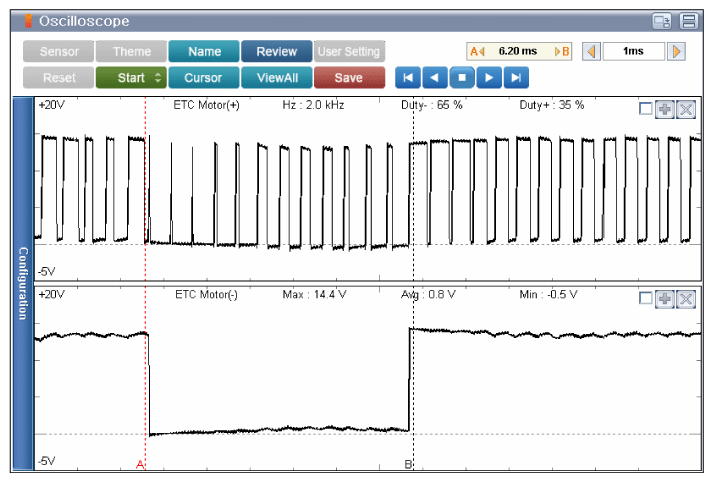

Fig 2: Display - ETC Motor Operation Waveform (When Engine Accelerating)

Courtesy of KIA MOTORS AMERICA, INC.
