Component Inspection

■ Check FTPS

1. Connect KDS/GDS to DLC (Data Link Cable).
2. Check the variation of FTPS by controlling the engine speed to 2, 000RPM.

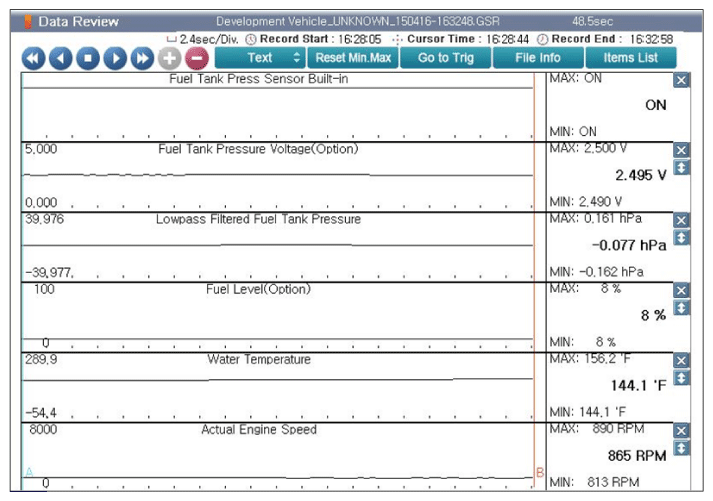

   Fig 1: Display - The Variation Of FTPS With PCSV Operation

   Courtesy of KIA MOTORS AMERICA, INC.
3. Does the CCV operate properly? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace FTPS and then go to "SYSTEM INSPECTION " procedure.
