Component Inspection

WARNING: This page is about a different variant/trim than selected.

■ Perform PCSV Actuation Test

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON" & ENG "OFF"
Perform "Actuation Test" for PCSV.

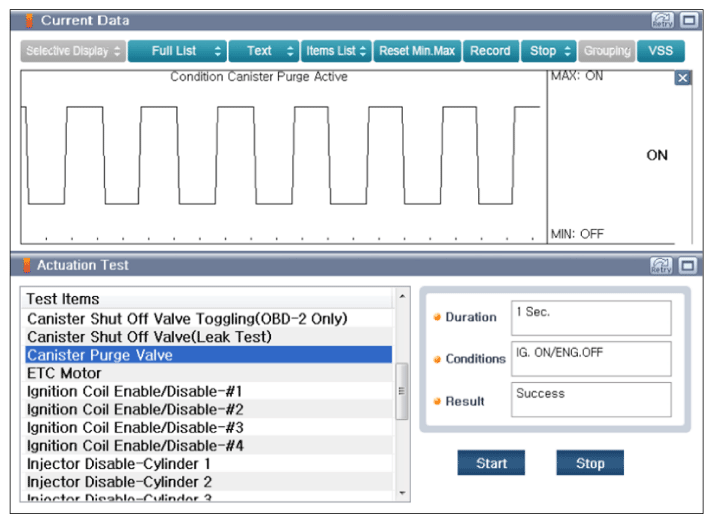

Fig 1: Display - Canister Purge Valve Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.

■ Inspect PCSV

Ignition "OFF"
Disconnect PCSV connector.
Measure resistance between power and control terminal of the PCSV. (Component Side)
Specification: Approx. 2.0kΩ [20°C (68°F)]

Fig 2: Display - PCSV Resistance Screen
Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

Does the PCSV operate properly? (Check variation)
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace PCSV and then go to "SYSTEM INSPECTION " procedure.
