Signal Waveform & Data
WARNING: This page is about a different variant/trim than selected.
Courtesy of KIA MOTORS AMERICA, INC.

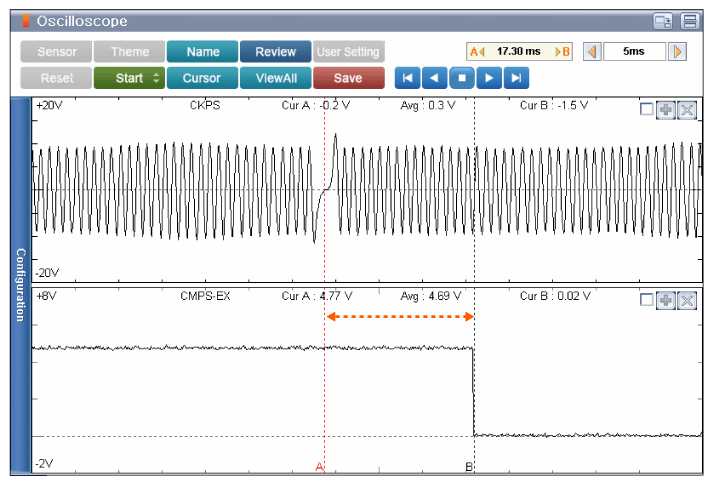

A: CKPS & CMPS (Exhaust side) Synchronization - There are about 16~17 teeth between the CKPS missing tooth and CMPS signal.
