Component Inspection

■ Inspect CKPS

1. Ignition "OFF"
2. Disconnect CKPS connector.
3. Measure resistance between Pin No. 1 (Signal A) terminal and Pin No. 2 (Signal B) terminal of the CKPS. (Component Side)

   Specification:  Approx. 950Ω [20°C (68°F)]

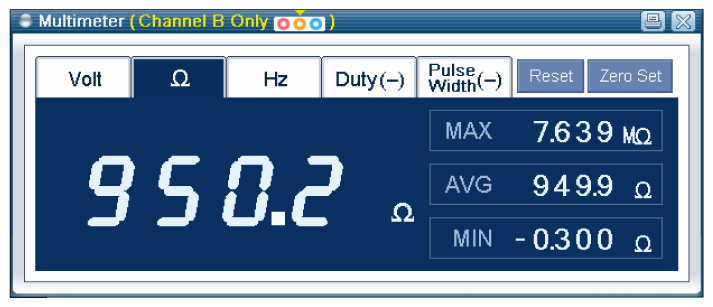

   Fig 1: Display - CKPS Resistance Screen

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the CKPS operate properly? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace CKPS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
