Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

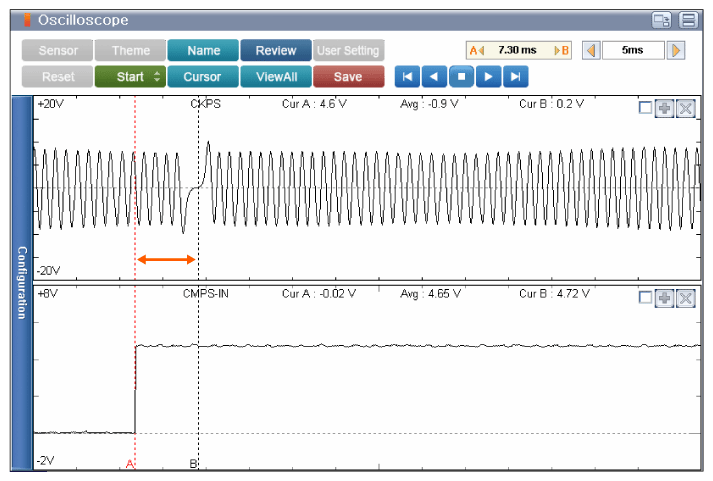

Fig 1: Display - CKPS, CMPS-IN Normal Waveforms (Engine Idle)
G11833729Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Intake side) Synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.
