Monitor KDS/GDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect KDS/GDS to DLC (Data Link Cable).
  2. Check the "Current Data" about related DTC with KDS/GDS during Cranking the engine.

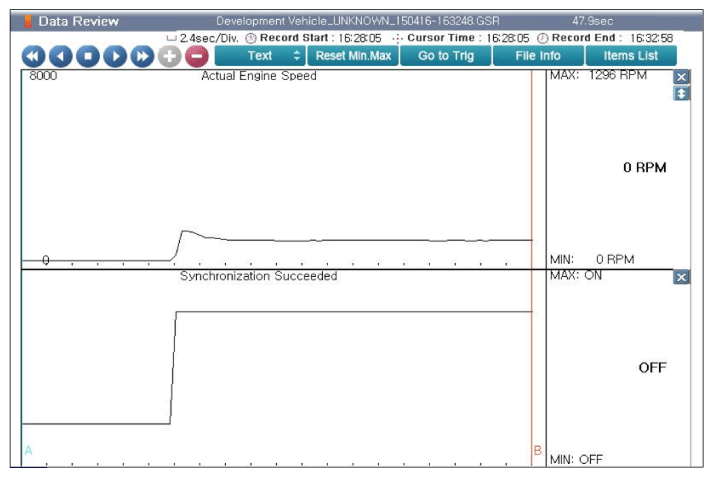

    Fig 1: Display - Engine Start-Up Screen
    G11833731Courtesy of KIA MOTORS AMERICA, INC.
  3. If the parameter is not similar with shown data, measure related waveforms with KDS/GDS.

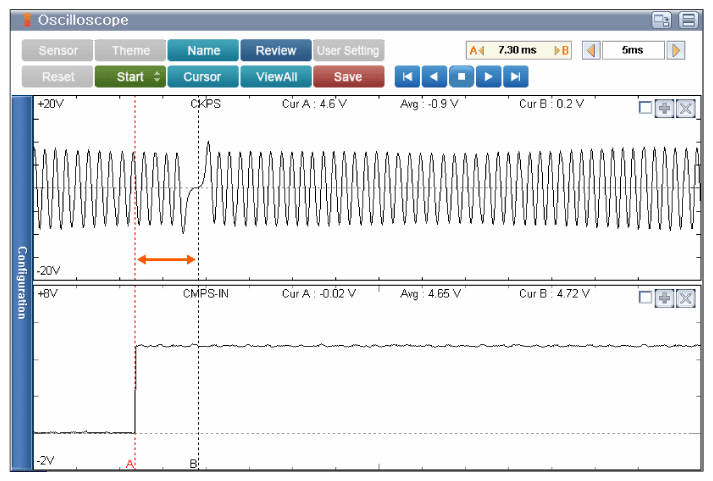

    Fig 2: Display - CKPS, CMPS (IN) Normal Waveforms (Engine Idle)
    G11833732Courtesy of KIA MOTORS AMERICA, INC.

    A: CKPS & CMPS (Intake side) Synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.

  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
