Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

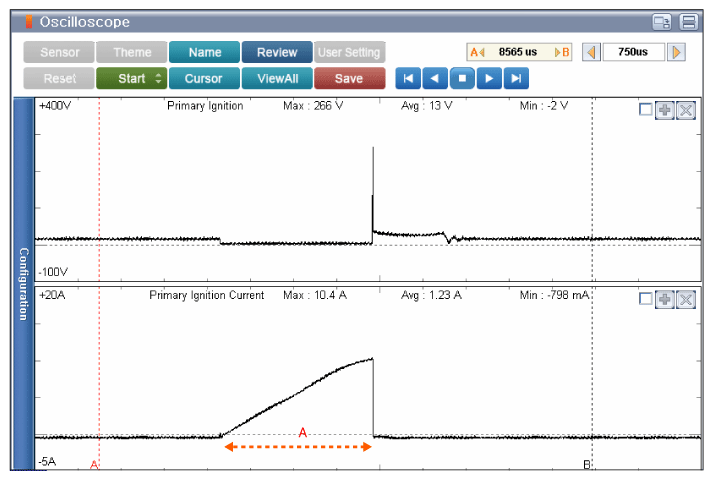

Fig 1: Display - Engine Idle After Warm Up Screen (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Primary Ignition control time - Approx. 750μs

CH. A - Primary Ignition Max 266V

CH. AUX - Primary Ignition Current MAX 10.4A

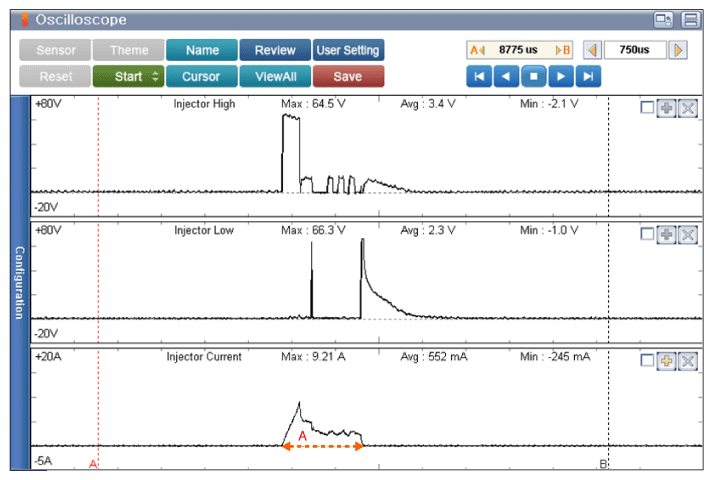

Fig 2: Display - Engine Idle After Warm Up Screen (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 1545μs

CH. A - Injector Max 64.4V

CH. AUX - Injector Current MAX 9.09A
