System Inspection
WARNING: This page is about a different variant/trim than selected.
■ Spark plug check
- Remove the spark plugs.
- Visually/physically inspect the following items:
- Damaged insulation, Worn electrodes, Oil or fuel fouled, Loose terminals and cracks.
- Check for plug gap: 0.9-1.0mm (0.035-0.039in)
- Check if the spark plug for the relevant cylinder is lighter in color than the other plugs.
- Have any problems been found?
YES
- Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "Compression pressure check" procedure below.
■ Compression pressure check
- Warm up the engine to normal operating temperature.
- Remove the fuel pump fuse (15A).
- Wait until the engine stopped.
- Remove the ignition coils and spark plugs.
- Crank the engine to remove any foreign material in the cylinders.
- Put a compression pressure gauge into spark plug hole.
- Check compression pressure at each cylinder.
Specification: Approx. 15kg/cm2
- Is compression pressure for each cylinder displayed within specifications?
YES
- Go to "Ignition system check" procedure below.
NO
- Add a small amount of oil through the spark plug hole, and repeat above steps. If the addition of oil causes the compression to rise, the cause is a worn or damaged piston ring or cylinder inner surface.
- If the compressions at each cylinders are not same or not similar, a burnt or defective valve seat, worn head gasket and pressure rings can be the cause of vibration of engine. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
■ Ignition system check
- Ignition "OFF"
- Disconnect ignition coil harness connectors from the ignition coils.
- Do visual inspection.
- Check contamination or damage on the ignition coils.
- Ignition "ON" & ENG "OFF"
- Measure the voltage between power terminal of ignition coil #1, #2, #3, #4 harness connectors and chassis ground.
Specification: Approx 12V
- Connect ignition coil harness connectors to the ignition coils.

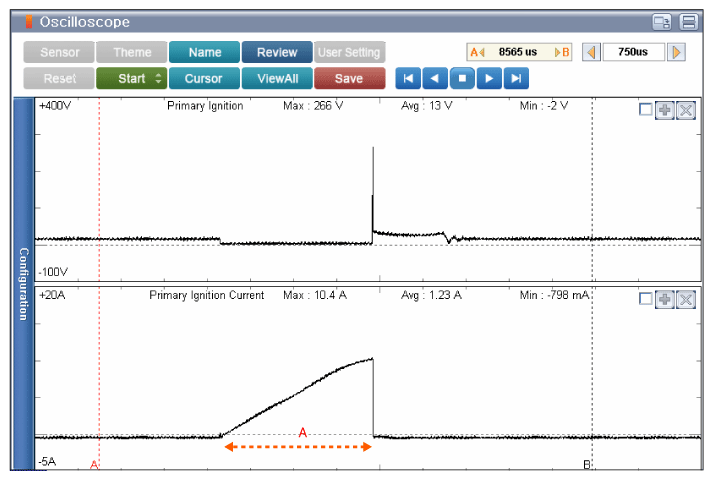

- Compare with the below reference value and ignition primary waveform and determine whether the values are normal or not.
Primary Ignition control time - Approx. 750us
CH. A - Primary Ignition Max 266V
CH. AUX - Primary Ignition Current MAX 10.4A
YES
- Go to "Check Injector performance" procedure below.
NO
- Substitute with a known-good IG Coil and check for proper operation. If the problem is corrected, replace IG Coil and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
■ Check Injector performance
- Ignition "OFF"
- Connect CH A probe to control terminal of Injector (High side) and CH B probe to control terminal of Injector (Low side).
- Connect CH AUX probe to control wire of Injector.
- Warm up the engine to normal operating temperature.

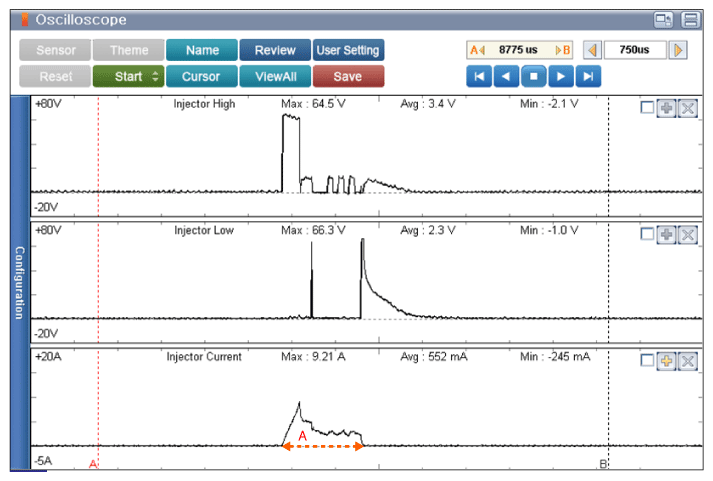

Specification: Refer to SIGNAL WAVEFORM & DATA
A: Fuel injection time - Approx. 1545μs
CH. A - Injector Max 64.4V
CH. AUX - Injector Current MAX 9.09A
- Does the injector operate properly within specification?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good Injector and check for proper operation. If the problem is corrected, replace Injector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
