Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

Fig 1: Display - Engine Idle Warm Up Screen

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 1450us

CH. A - Injector Max 64.5V

CH. AUX - Injector Current MAX 9.21A

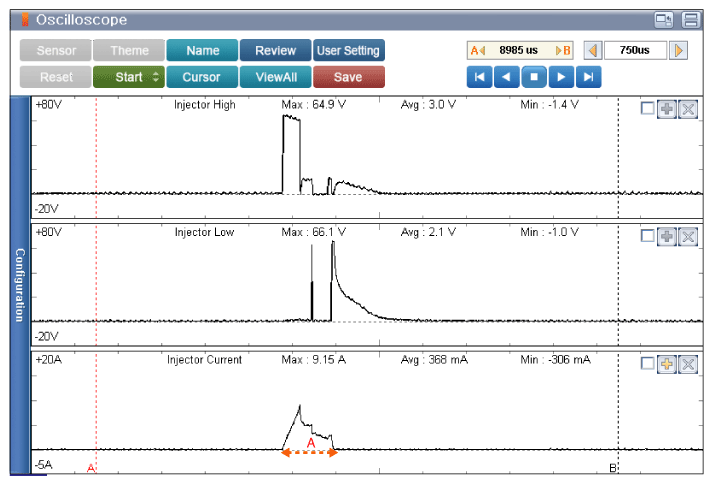

Fig 2: Display - Injector Current Data Screen (2500RPM)

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 900us

CH. A - Injector Max 64.9V

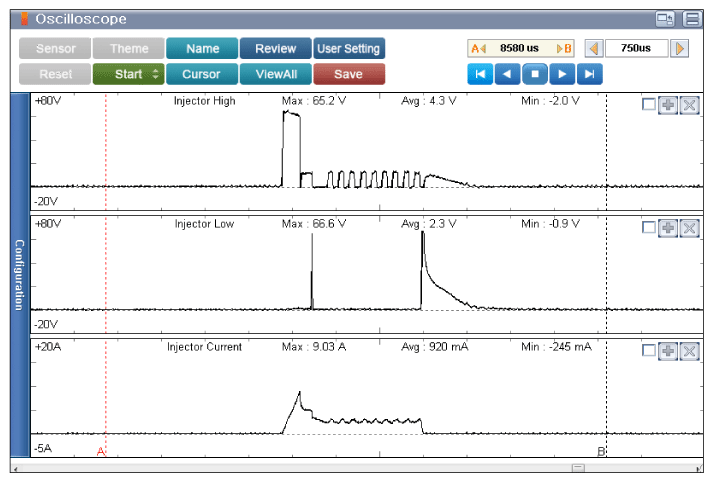

Fig 3: Display - Injector Current Data Screen (Acceleration)

Courtesy of KIA MOTORS AMERICA, INC.

CH. A - Injector Max 65.2V

CH. AUX - Injector Current MAX 9.09A
