Monitor KDS/GDS Data

WARNING: This page is about a different variant/trim than selected.

■ Current Data Inspection

  1. Ignition "OFF".
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON".
  4. Monitor following parameters in "Current Data" with KDS/GDS.

    Specification:  Refer to below

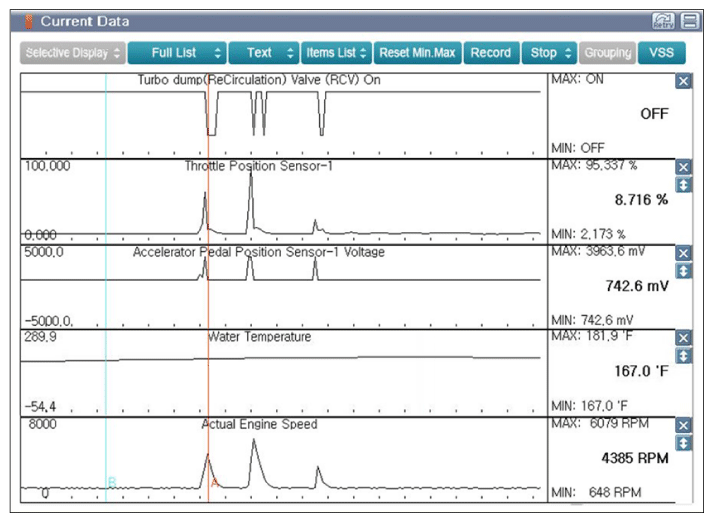

    Fig 1: Display - RCV Operation Current Data Screen (Acceleration)
    G11833498Courtesy of KIA MOTORS AMERICA, INC.

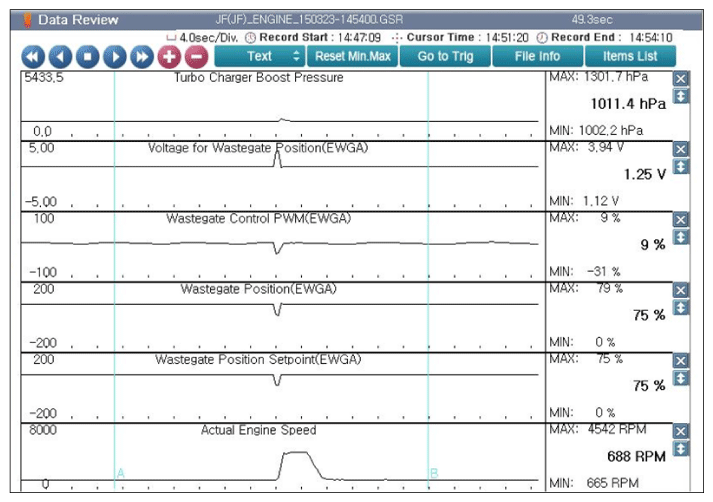

    Fig 2: Display - EWGA Actuation Current Data Screen (Acceleration)
    G11833499Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the parameter displayed within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
