Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
NOTE:
  • Check that the shift lever and manual control lever are placed in the "N" position.
  • Install the shift cable after checking the direction of projection to prevent wrong assembly.

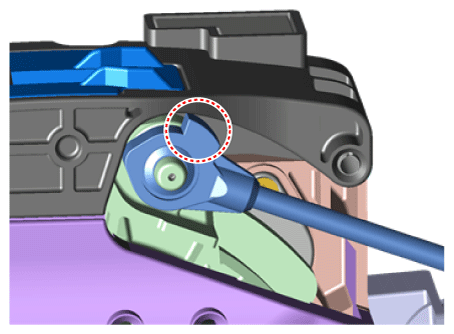

    Fig 1: Installing Shift Cable
    G11823755Courtesy of KIA MOTORS AMERICA, INC.
  • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

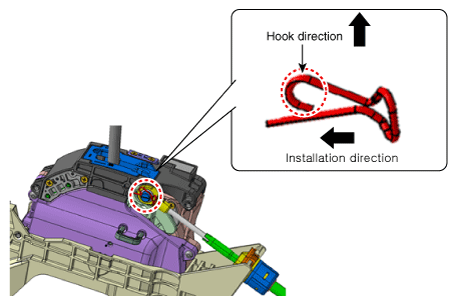

Fig 2: Installing Snap Pin With Hook Facing Upward
G11823756Courtesy of KIA MOTORS AMERICA, INC.
