Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
NOTE: Before installing the input speed sensor, check the assembled state of the O-rings (A) and apply gear oil to the surface of O-rings.

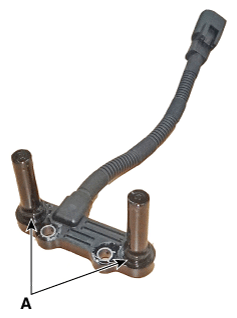

Fig 1: Locating Assembled State Of O-Rings
G11823728Courtesy of KIA MOTORS AMERICA, INC.
