Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Place the shift lever in the "N" position.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Remove the air duct and the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Disconnect the inhibitor switch connector (A).
  5. Loosen the shift cable mounting nut (B).

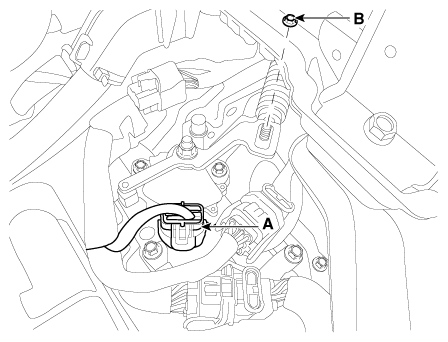

    Fig 1: Disconnecting Inhibitor Switch Connector
    G11823740Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the manual control lever (A).

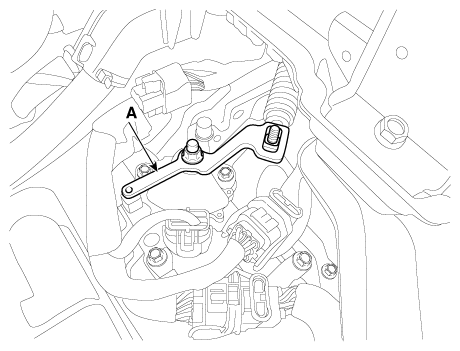

    Fig 2: Removing Manual Control Lever
    G11823741Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the inhibitor switch (A).

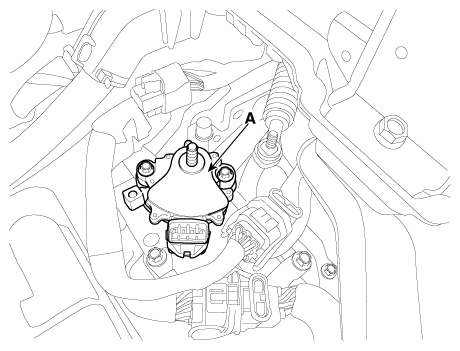

Fig 3: Removing Inhibitor Switch
G11823742Courtesy of KIA MOTORS AMERICA, INC.
