Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Check that the shift lever is placed in the "N" position.

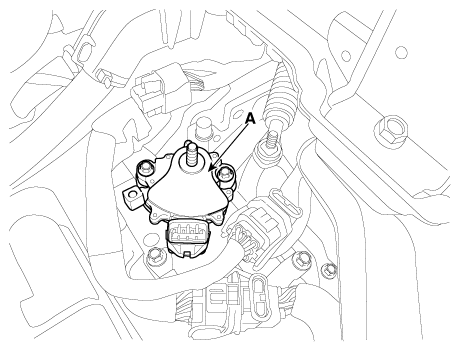

Install the inhibitor switch (A).
NOTE: Lightly tighten the inhibitor switch mounting bolts so that necessary adjustments can be made.

Fig 1: Installing Inhibitor Switch
Courtesy of KIA MOTORS AMERICA, INC.

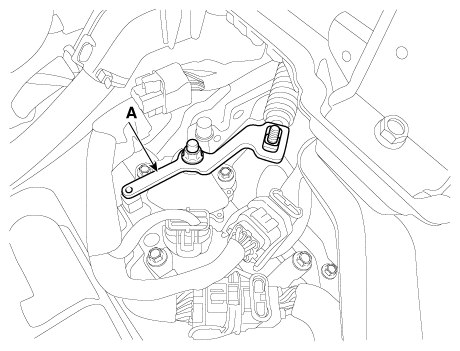

Install the manual control lever (A).
NOTE: Lightly tighten the manual control lever nut so that necessary adjustments can be made.

Fig 2: Installing Manual Control Lever
Courtesy of KIA MOTORS AMERICA, INC.

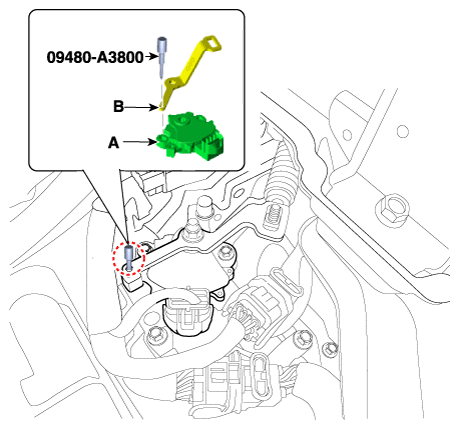

Align the hole (B) in the manual control lever with the "N" position hole (A) of the inhibitor switch and then insert the SST inhibitor switch guide pin (09480-A3800).

Fig 3: Aligning Hole In Manual Control Lever
Courtesy of KIA MOTORS AMERICA, INC.

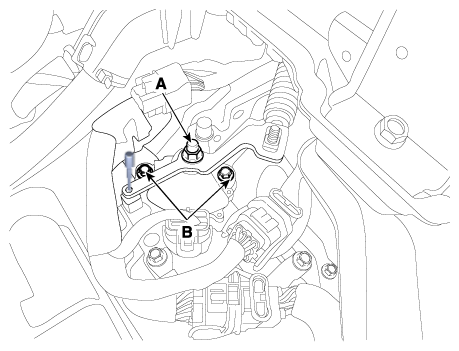

Tighten the manual lever mounting nut (A) to the specified torque.
Tightening torque:

17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)
Tighten the inhibitor switch mounting bolts (B) to the specified torque.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 4: Locating Manual Lever Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the SST (09480-A3800) from the adjustment hole.

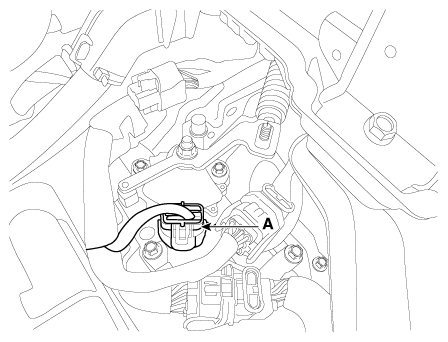

Connect the inhibitor switch connector (A).

Fig 5: Connecting Inhibitor Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

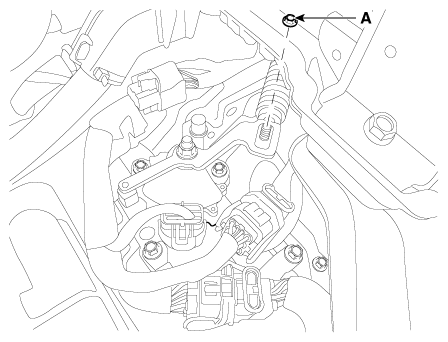

Tighten the nut (A) loosely.
NOTE: Lightly tighten the nut so that necessary adjustments can be made.

Fig 6: Locating Nut
Courtesy of KIA MOTORS AMERICA, INC.

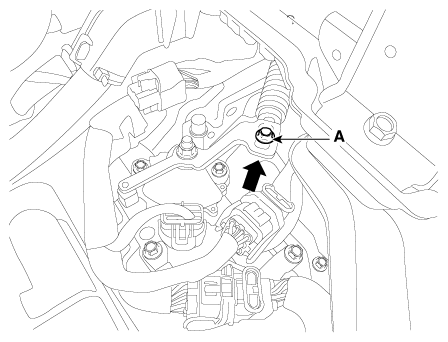

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Fig 7: Pushing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
