Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

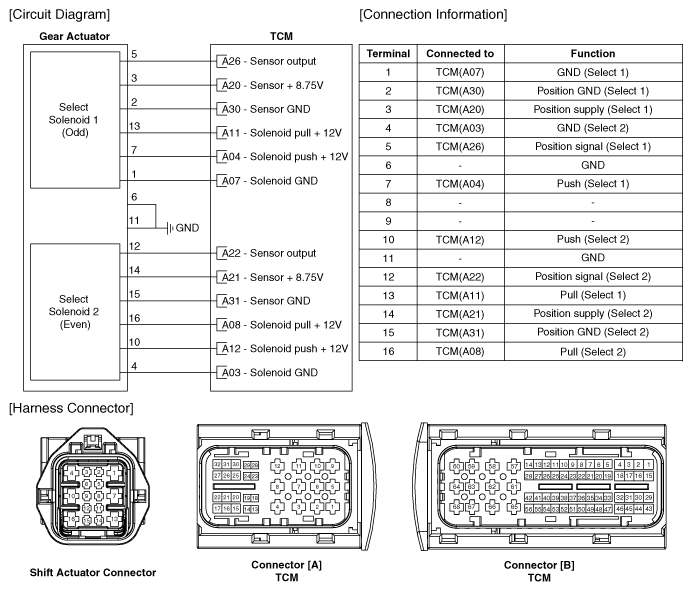

Fig 1: Gear Actuator Shift Motor Circuit (1 Of 2)
G11823716Courtesy of KIA MOTORS AMERICA, INC.

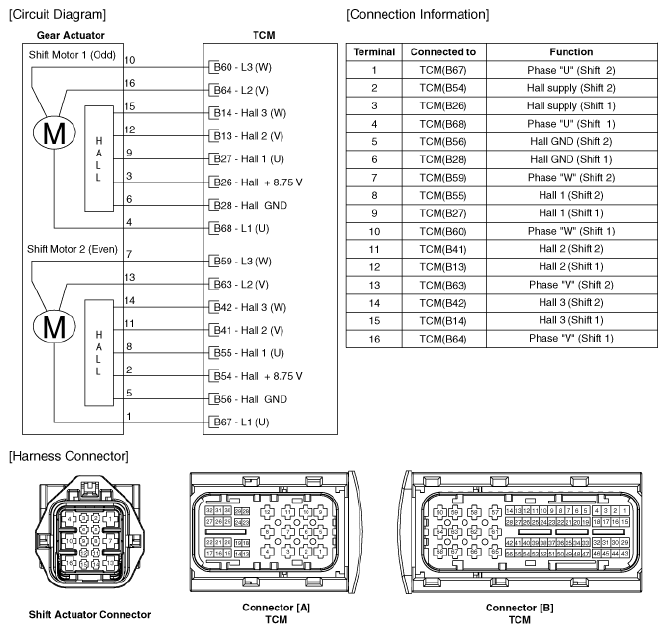

Fig 2: Gear Actuator Shift Motor Circuit (2 Of 2)
G11823717Courtesy of KIA MOTORS AMERICA, INC.
