Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
NOTE:
  • Check the following before installing the gear actuator assembly.
  1. Check that the gear actuator is placed in the "neutral" state.

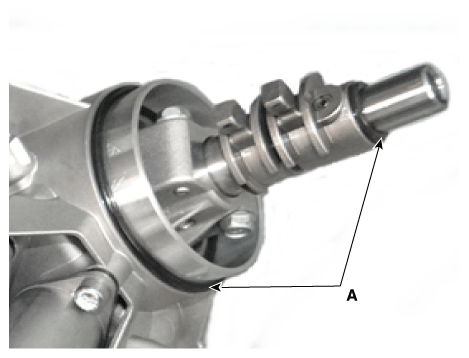

  2. Check the assembled state of the O-rings (A).
    Fig 1: Checking Assembled State Of O-Rings
    G11823721Courtesy of KIA MOTORS AMERICA, INC.
  3. Apply gear oil to the surface of O-rings.

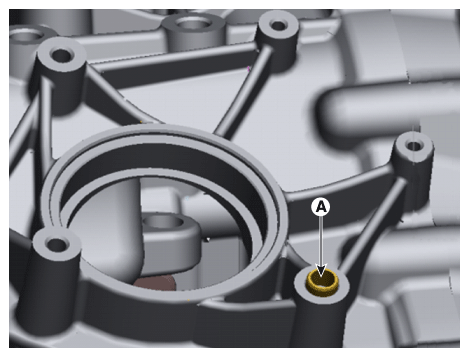

  4. Check the assembled state of the dowel pins (A).
Fig 2: Locating Assembled State Of Dowel Pins
G11823722Courtesy of KIA MOTORS AMERICA, INC.
  • Perform the clutch touch point learning procedure using the KDS/GDS after replacing the gear actuator assembly.

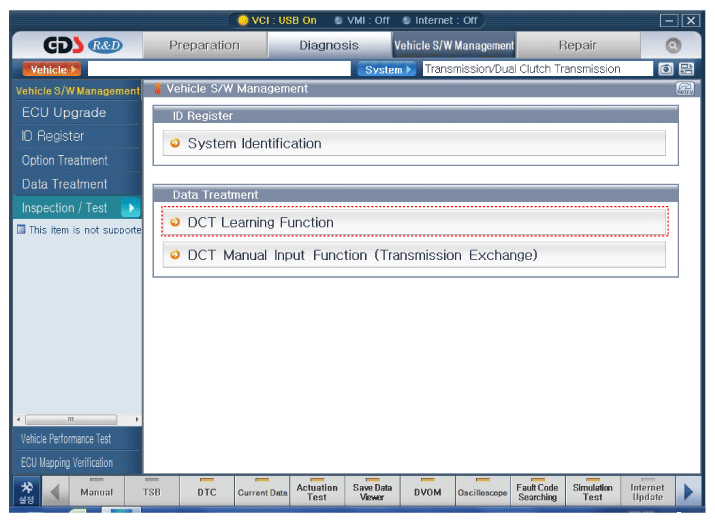

Fig 3: Screen Display - Perform Clutch Touch Point Learning Procedure
G11823723Courtesy of KIA MOTORS AMERICA, INC.
