Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative (-) cable.
  2. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  3. Remove the wiring from the TCM bracket.

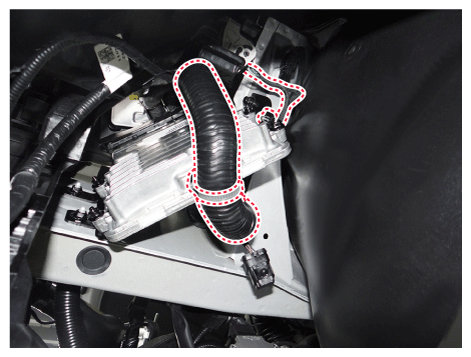

    Fig 1: Removing Wiring From TCM Bracket
    G11823668Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the TCM mounting nut (A).

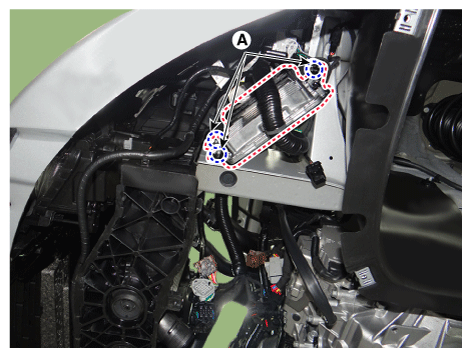

    Fig 2: Locating TCM Mounting Nut
    G11823669Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the TCM connector.
  6. Remove the TCM from the bracket by loosening the nuts.

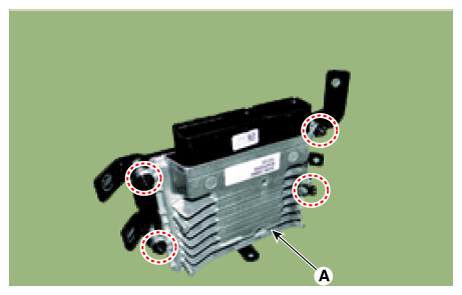

Fig 3: Disconnecting TCM Connector
G11823670Courtesy of KIA MOTORS AMERICA, INC.
