Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
NOTE:
  • The existing O-rings (B) and seal bolts (C) must be replaced with a new one while installing the clutch actuator motor (A). (Do not reuse it)
  • If clutch actuator needs replacement, measure the pull rod length of the old clutch actuator to determine if clutch wear compensation reset is needed.

    (Refer to Clutch Actuator Assembly  "Adjustment")

  • If needed, perform clutch actuator clutch wear compensation reset.

    (Refer to Clutch Actuator Assembly  "Adjustment")

  • Check the assembled state of the dowel pins (A) before installing the clutch actuator assembly.

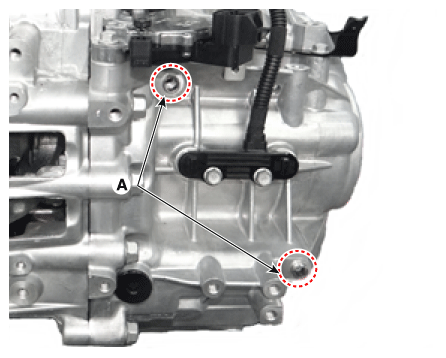

    Fig 1: Locating Dowel Pins
    G11823690Courtesy of KIA MOTORS AMERICA, INC.
  • Perform the clutch touch point learning procedure using the KDS/GDS after replacing the clutch actuator assembly.

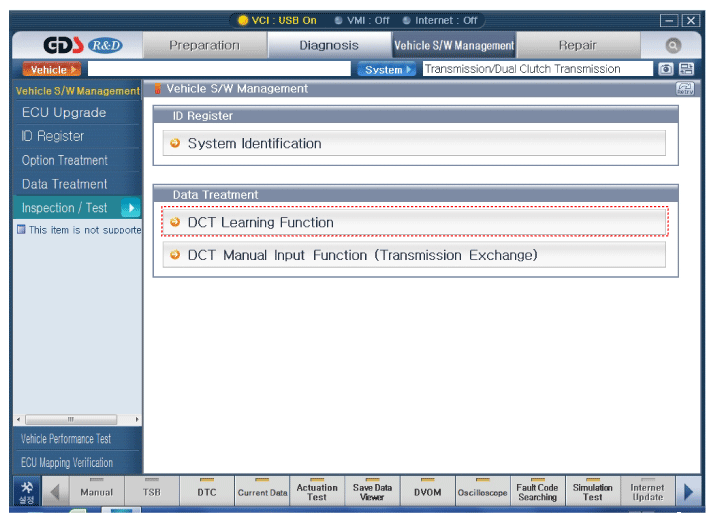

Fig 2: Screen Display - Perform Clutch Touch Point Learning Procedure
G11823691Courtesy of KIA MOTORS AMERICA, INC.
