Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. The windshield deicer switch inputs can be checked using the GDS.
  2. To check the input value of windshield deicer switch, select option "Body Control Module".
  3. Select option "Current Data of smart junction box".

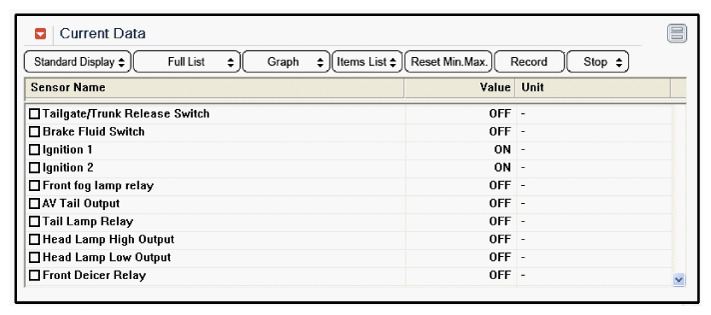

    Fig 1: Display Of Current Data Of Smart Junction Box
    G11818133Courtesy of KIA MOTORS AMERICA, INC.
  4. To check the input value of windshield deicer switch in force mode, select option "Actuation Test of smart junction box".

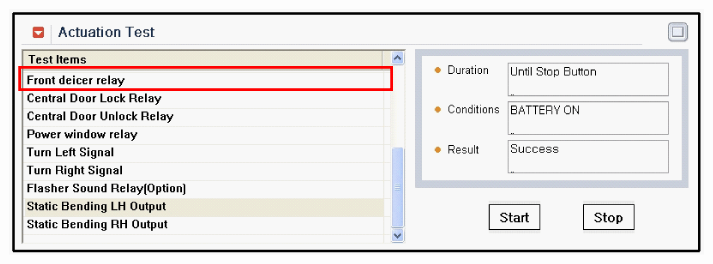

Fig 2: Display Of Front Deicer Relay Actuation Test Screen
G11818134Courtesy of KIA MOTORS AMERICA, INC.
