Air Bag, SRS
>>
Airbag System Diagnosis (2 Of 2) - Optima (Except HEV)
>>
DTC B1746-00: P-SIS (Side Impact Sensor, Pressure) Front-Passenger Short To Ground
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

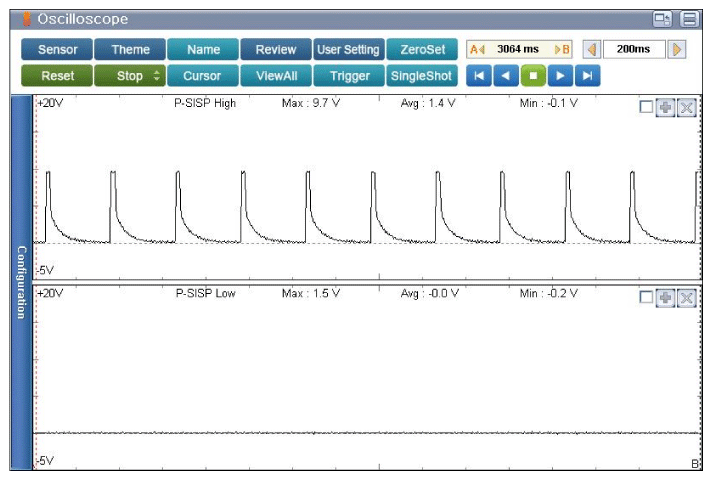

Fig 1: Scantool Display - Signal Waveform (Low & High) Of Pressure Side Impact Sensor-Passenger (Connector Disconnected)
Courtesy of KIA MOTORS AMERICA, INC.
