Airbag System Diagnosis (2 Of 2) - Optima (Except HEV)
>>
DTC B1480-00: Inflatable Curtain Airbag Passenger Resistance Circuit Short To Battery
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

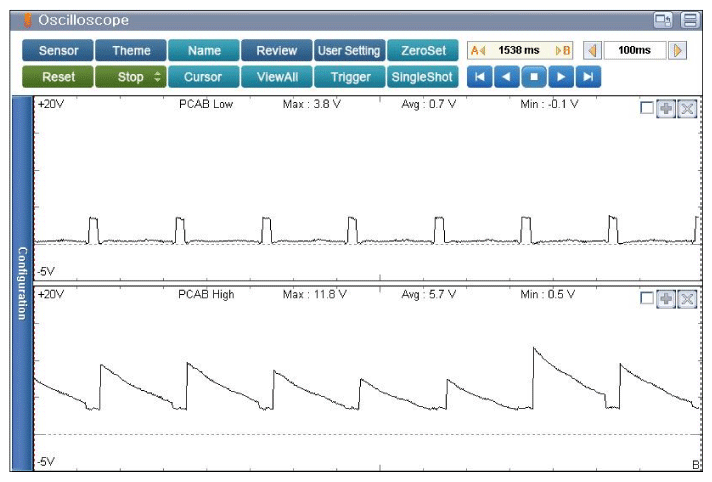

Fig 1: Scantool Display - Signal Waveform (Low & High) Of Curtain Airbag-Passenger (Connector Disconnected)
