Rear side impact sensor
- Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
- Remove the rear seat.
(Refer to Body (Interior and Exterior) - "REAR SEAT ")

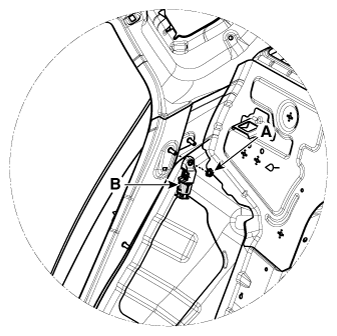

- Loosen the nut (A) and then remove the rear side impact sensor (B).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
