Repair Procedures: Removal

1. Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.
2. Remove the front bumper.

   (Refer to Body (Interior and Exterior) - "FRONT BUMPER ")

3. Separate the radiator support upper member (A) after loosening the bolts.

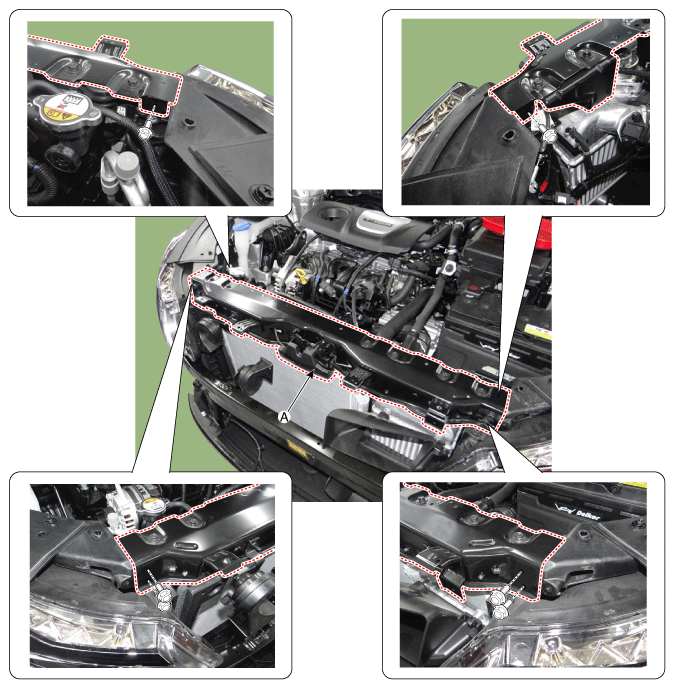

   Fig 1: Separating Radiator Support Upper Member

   Courtesy of KIA MOTORS AMERICA, INC.
4. Disconnect the front impact sensor connector (A) and then remove the front impact sensor (B) after loosening the nut.

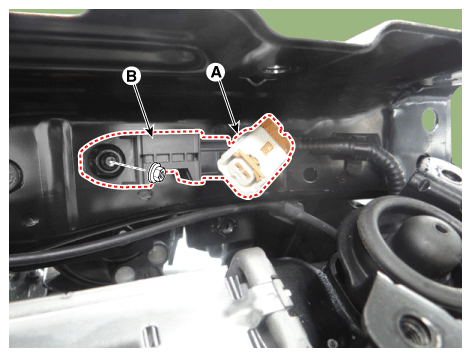

Fig 2: Disconnecting Front Impact Sensor Connector

Courtesy of KIA MOTORS AMERICA, INC.

Installation

1. Tighten the front impact sensor mounting nut (B) and then connect the front impact sensor (A).

   Tightening torque:

   7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

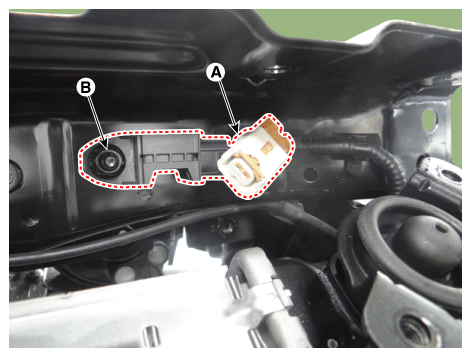

   Fig 3: Tightening Front Impact Sensor Mounting Nut

   Courtesy of KIA MOTORS AMERICA, INC.
2. Install the radiator support upper member (A) after loosening the bolts.
   Fig 4: Installing Radiator Support Upper Member

   Courtesy of KIA MOTORS AMERICA, INC.
3. Install the front bumper.

   (Refer to Body (Interior and Exterior) - "FRONT BUMPER ")

4. Reconnect the battery negative cable.
5. After installing the Front Impact Sensor, confirm proper system operation:
   • Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
