Air Bag, SRS
>>
Airbag System Diagnosis (1 Of 2) - Optima (Except HEV)
>>
DTC B1412-00: SIS (Side Impact Sensor) Rear-Driver Communication Error
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

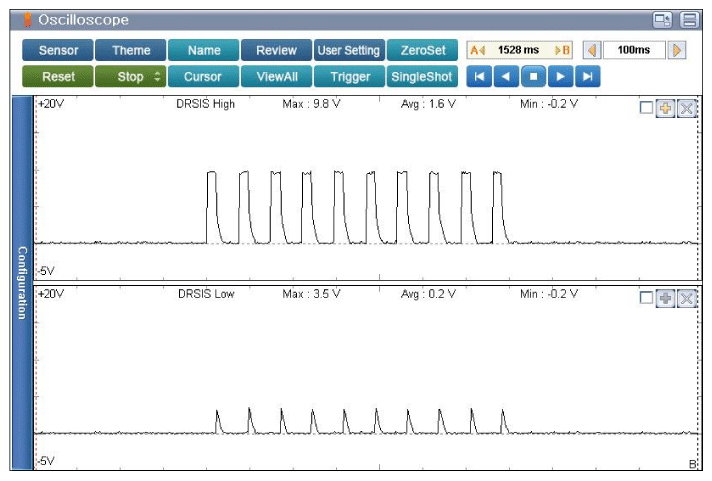

Fig 1: Scantool Display - Signal Waveform (Low & High) Of Side Impact Sensor Rear-Drive (Connector Disconnected)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
