Power Circuit Inspection

Ignition "OFF".
Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
Disconnect the SRSCM connector.
Connect the battery (-) terminal cable and start engine.
Measure voltage between Pin No. 1 (ON/START Power) of the SRSCM harness connector and chassis ground.
Specification: Battery Voltage

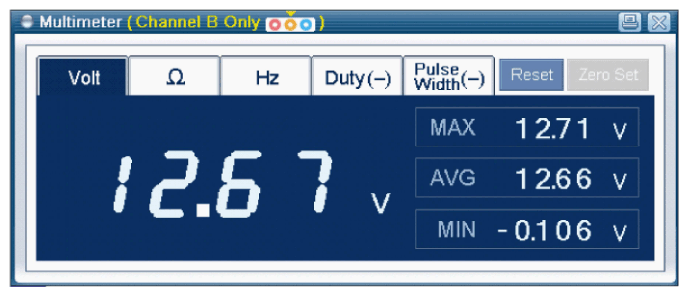

Fig 1: Scantool Display - Checking Voltage With KDS/GDS Multimeter
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured value within specifications?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure.
NO
- If no problems were found with the circuits or connectors, Replace the main wiring of SRSCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
