Component Location

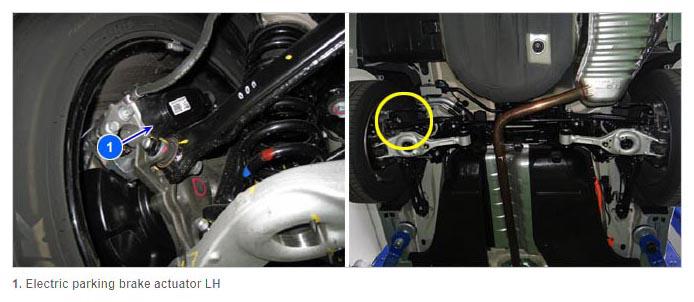

Fig 1: Locating Electric Parking Brake Actuator LH

G11822383

Courtesy of KIA MOTORS AMERICA, INC.
