Component Location

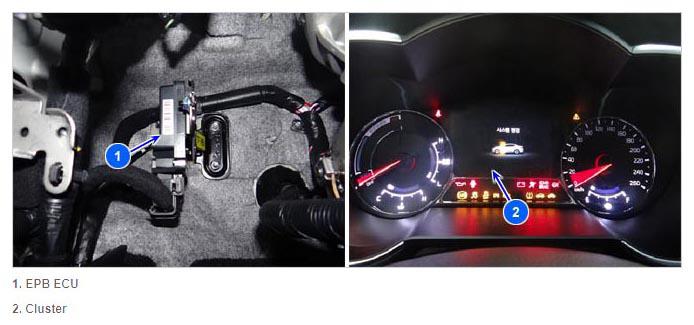

Fig 1: Locating Electric Parking Brake ECU (1) And Cluster (2)

G11822369

Courtesy of KIA MOTORS AMERICA, INC.
