Electric Parking Brake Diagnosis (HEV)
>>
DTC C1625: CAN Time-Out ABS/ESC(ESP)
>>
Component Location
Component Location

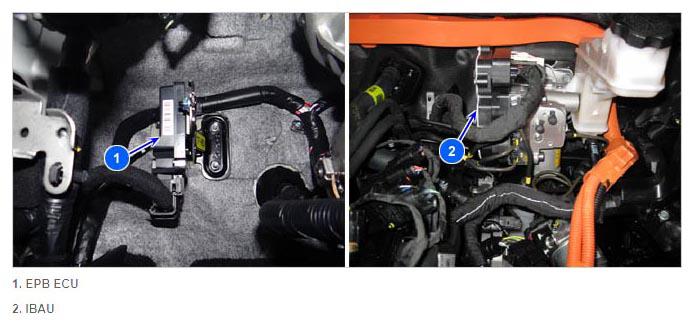

Fig 1: Locating Electric Parking Brake ECU (1) And IBAU (2)
Courtesy of KIA MOTORS AMERICA, INC.
