Monitor GDS Data

  1. Connect Data Link Connector(DLC) to GDS.
  2. Check "Diagnostic Trouble Codes (DTC)" about AT using GDS.

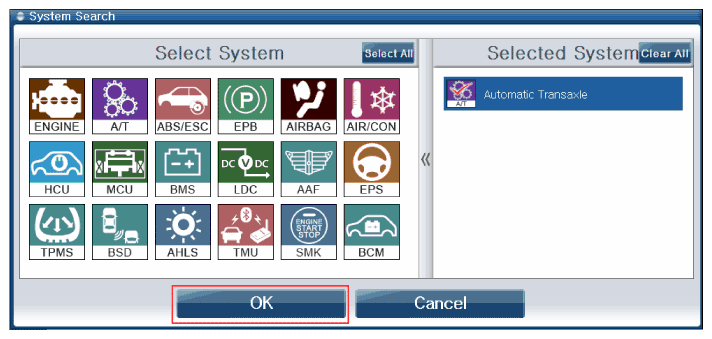

    Fig 1: Scantool Display - AT System Selected
    G11822341Courtesy of KIA MOTORS AMERICA, INC.
  3. AT system about related DTC exist?

    YES

    • Repair according to DTC diagnostic guide of AT system.

    NO

    • Go to Terminal And Connector Inspection procedure below.
