Circuit Diagram

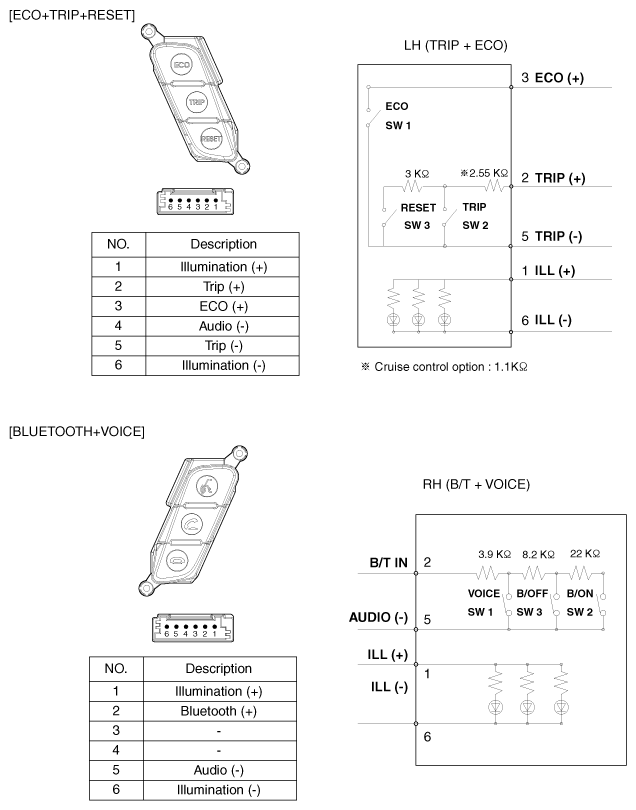

Fig 1: Trip Switch Schematic Diagrams & Terminal Descriptions (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

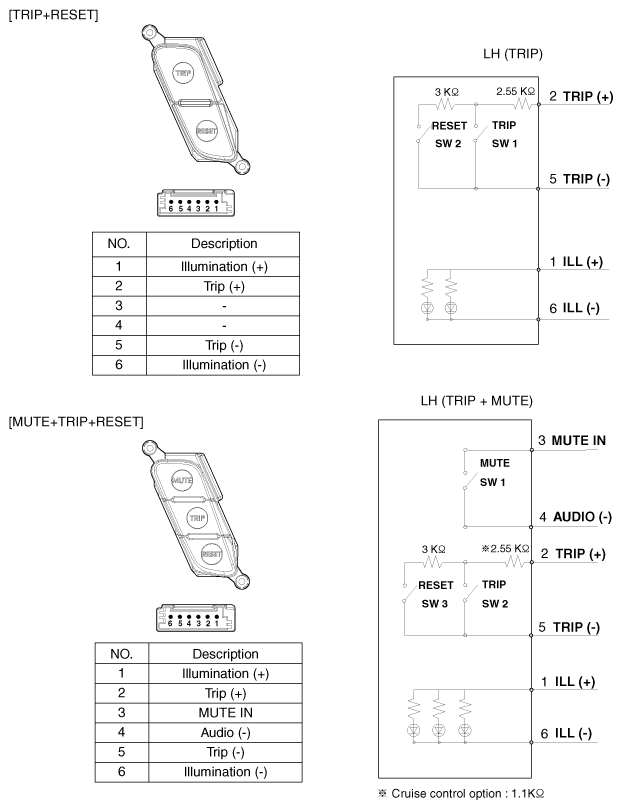

Fig 2: Trip Switch Schematic Diagrams Terminal Descriptions (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
