Circuit Diagram

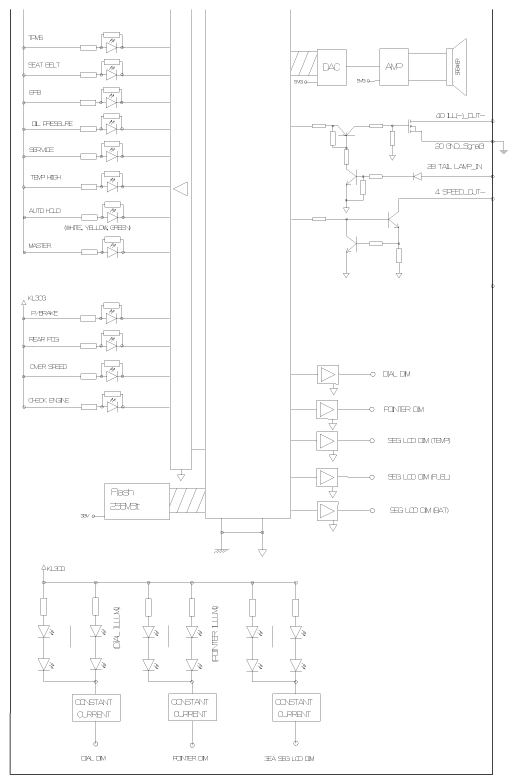

Fig 1: Indicator And Gauge Schematic Diagram (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

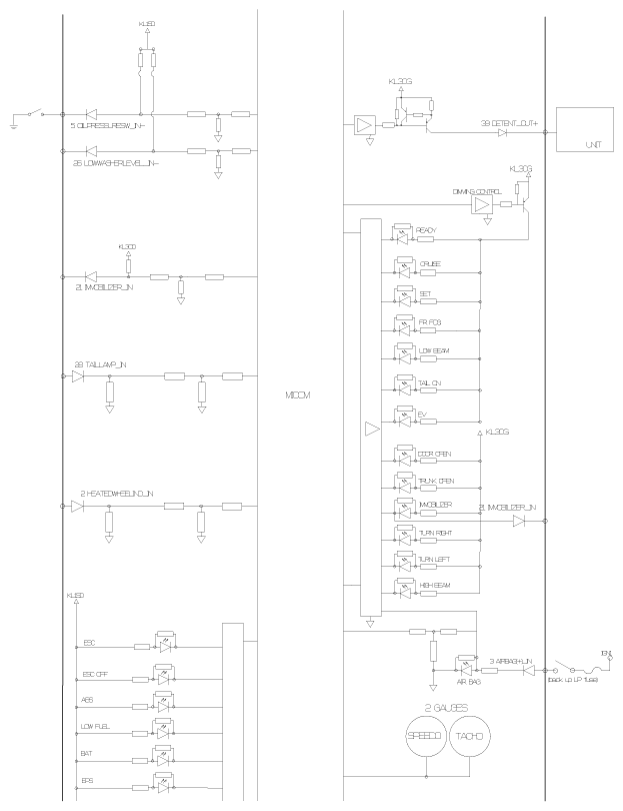

Fig 2: Indicator And Gauge Schematic Diagram (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

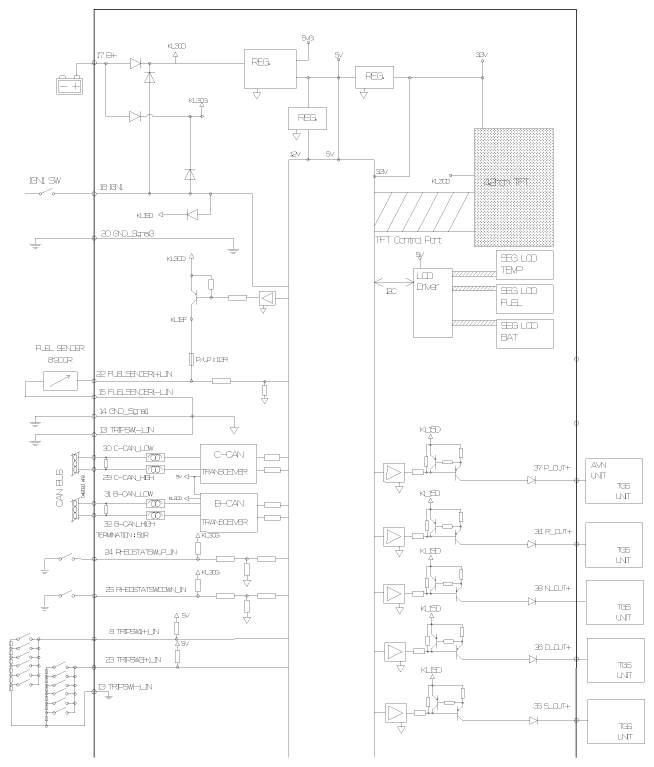

Fig 3: Indicator And Gauge Schematic Diagram (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
