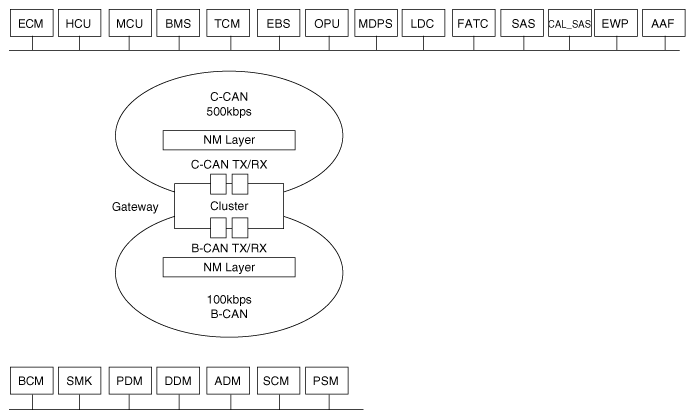

Cluster Network Diagram
| ECM | Engine Control Module |
| HCU | Hybrid Control Module |
| MCU | Motor Control Module |
| BMS | Battery Management System |
| TCM | Transaxle Control Module |
| EBS | Electronic Brake System |
| OPU | Oil Pump Unit |
| MDPS | Motor Driving Power Steering |
| LDC | Low DC/DC Converter |
| FATC | Full Automatic Temperature Control |
| EWP | Electronic Water Pump |
| AAF | Active Air Flap |
| BCM | Body Control Module |
| SMK | Smart Key unit |
| PDM | Power Distribution Module |
| DDM | Driver Door Module |
| ADM | Assist Door Module |
| SCM | Steering Control Module |
| PSM | Power Seat Module |
