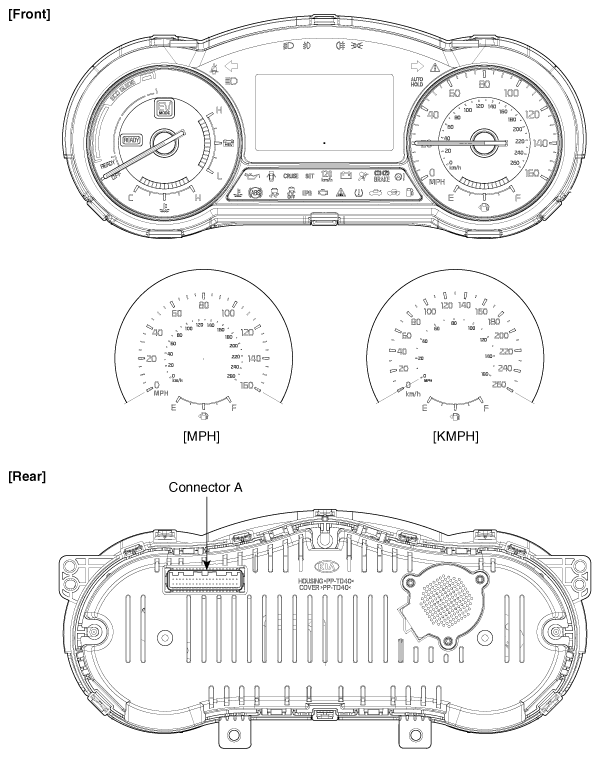

Components And Components Location: Components

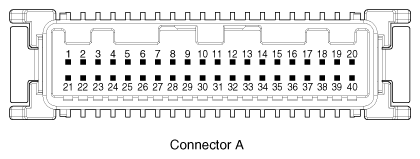

CONNECTOR PIN INFORMATION
| No. | Description |
|---|---|
| 1 | - |
| 2 | Heated wheel indicator input |
| 3 | Air bag (+) input |
| 4 | Speed output (-) (4P output) |
| 5 | Oil pressure switch input (-) |
| 6 | - |
| 7 | - |
| 8 | Trip switch 1 (+) input (Cruise button) |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | - |
| 13 | Trip switch (-) input |
| 14 | Signal 1 ground |
| 15 | Fuel sender (-) input |
| 16 | - |
| 17 | Battery (+) |
| 18 | IGN1 |
| 19 | - |
| 20 | Signal 3 ground |
| 21 | Immobilizer input |
| 22 | Fuel sender (+) input |
| 23 | Trip switch 2 (+) input (Trip button) |
| 24 | Rheostat switch up input |
| 25 | Rheostat switch down input |
| 26 | Low washer level input (-) |
| 27 | - |
| 28 | Tail lamp input (Illumination (+)) |
| 29 | C CAN High |
| 30 | C CAN Low |
| 31 | B CAN Low |
| 32 | B CAN High |
| 33 | - |
| 34 | AT R position output (+) |
| 35 | AT S position output (+) |
| 36 | AT D position output (+) |
| 37 | AT P Position output (+) |
| 38 | AT N position output (+) |
| 39 | Detent output (+) |
| 40 | Illumination (-) output |
