Repair and Diagnosis
>>
Brakes
>>
Parking Brake System
>>
Electric Parking Brake Diagnosis - Optima (Except HEV)
>>
DTC C1812-08: CAN Time-Out Gateway
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

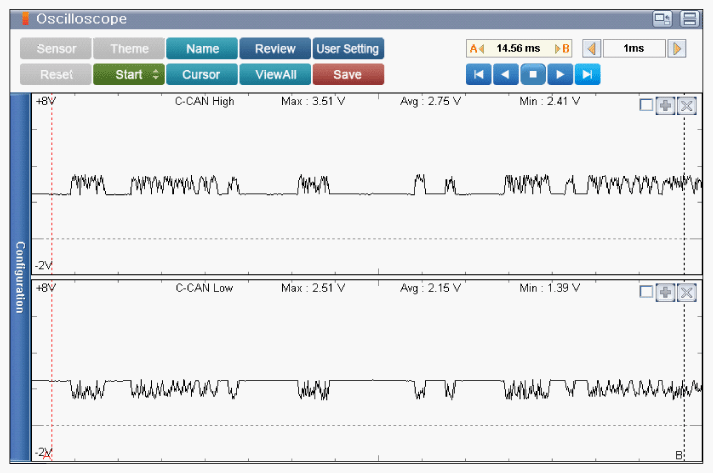

Fig 1: Screen Display - Normal C-CAN High And Low Signal Waveform Data
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
