Vehicle S/W Management

CAUTION: In case of replacing HECU, perform following procedures;

■ Variant Coding

Ignition "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Select "Vehicle S/W management" on KDS/GDS.
Perform "VARIANT CODING " in "Vehicle S/W management" with KDS/GDS.

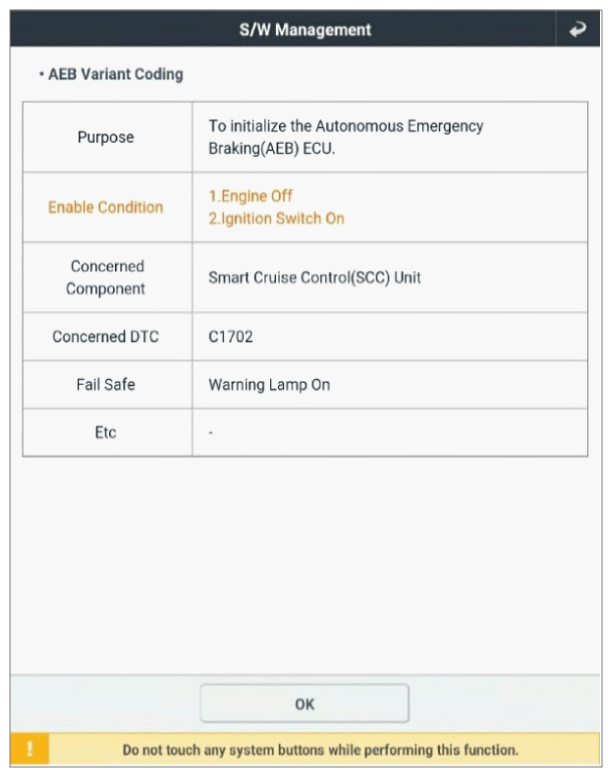

Fig 1: Screen Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

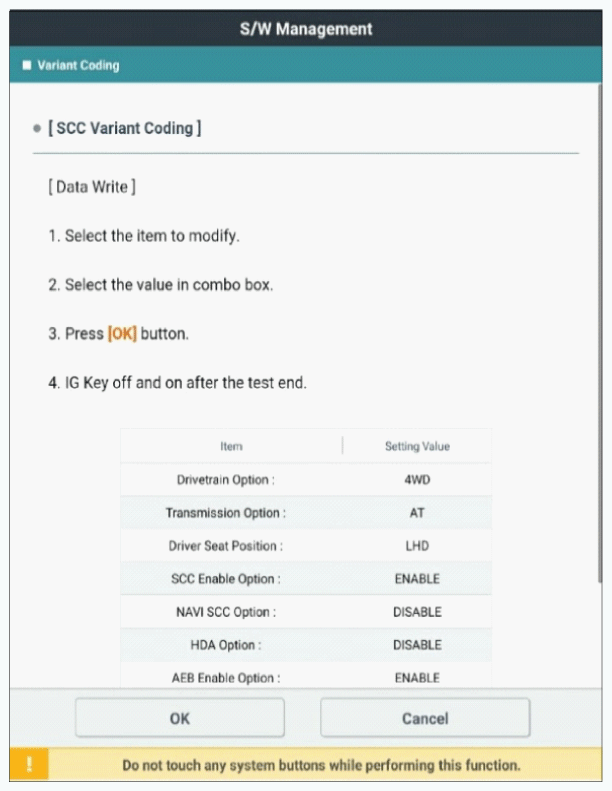

Fig 2: Screen Display - Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - Variant Code Input
Courtesy of KIA MOTORS AMERICA, INC.

■ Longitudinal G Sensor Calibration (HAC/DBC Only)

Ignition "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Select "Vehicle S/W Management" on KDS/GDS.
Perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with KDS/GDS.

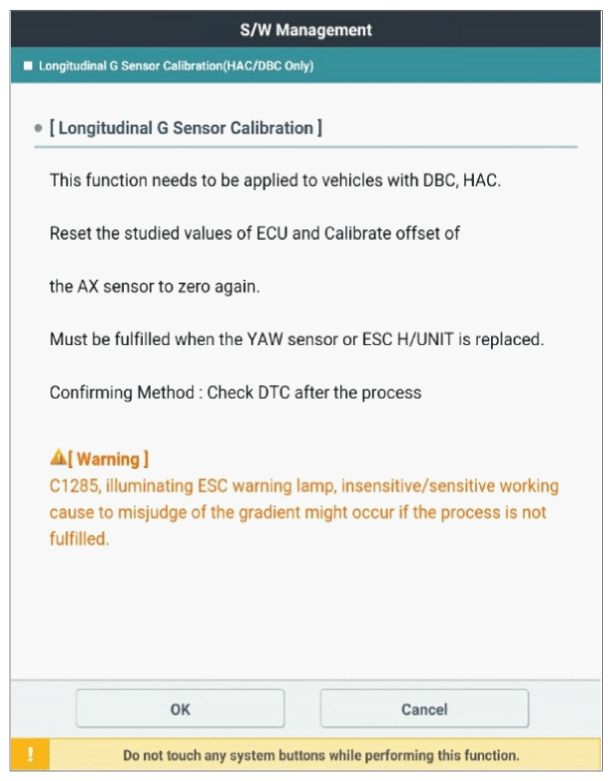

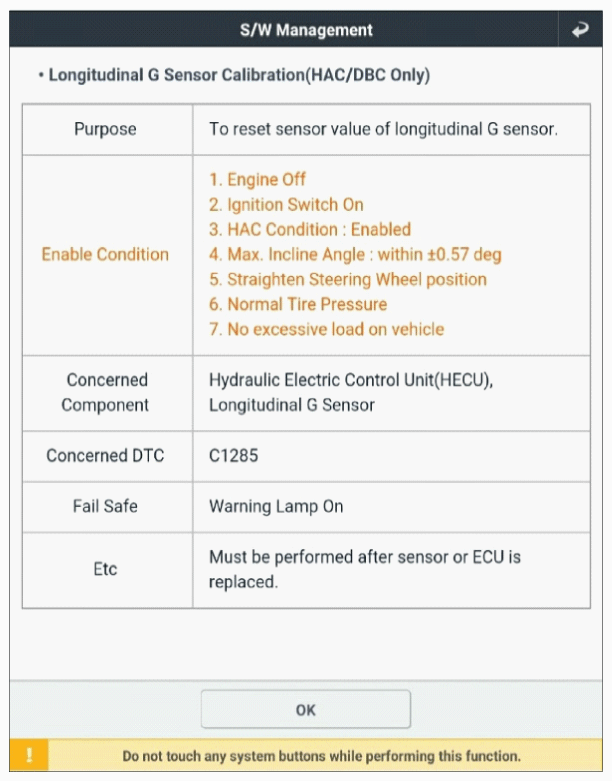

Fig 4: Screen Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

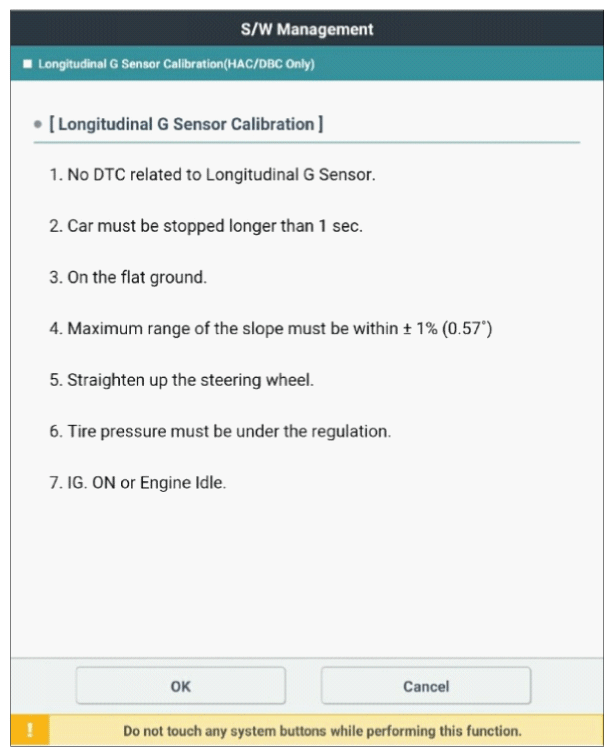

Fig 5: Screen Display - Longitudinal G Sensor Calibration (HAC/DBC Only)
Courtesy of KIA MOTORS AMERICA, INC.

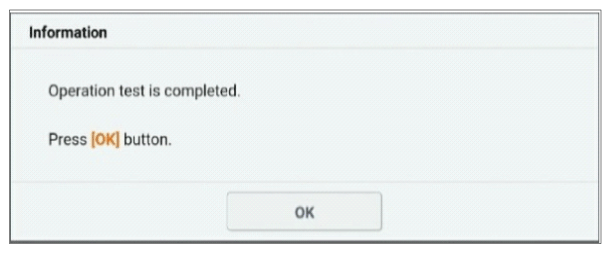

Fig 6: Screen Display - Stage Complete
Courtesy of KIA MOTORS AMERICA, INC.

■ Assembly Check (ECU replacement) - EPB integrated ESP (ESC) ECU Only

Ignition "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Select "Vehicle S/W Management" on KDS/GDS.
Perform "Assembly Check (ECU replacement)" in "Vehicle S/W Management" with KDS/GDS.

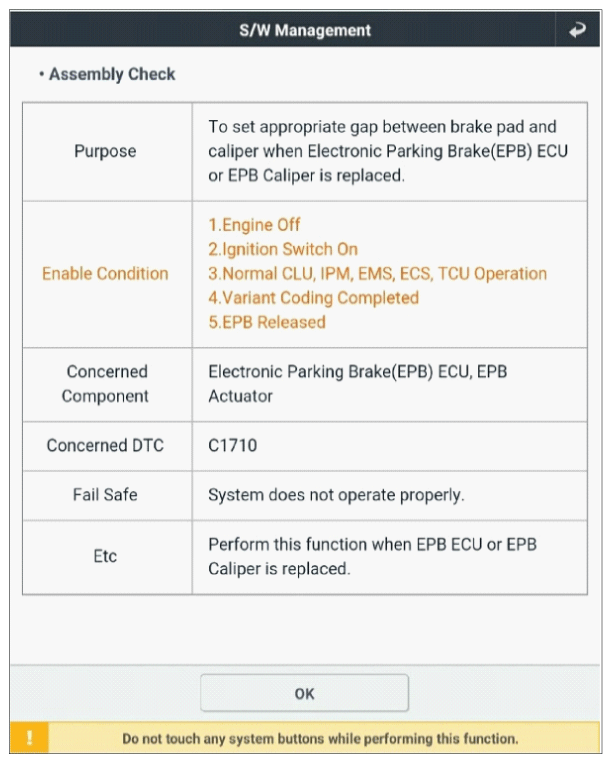

Fig 7: Screen Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

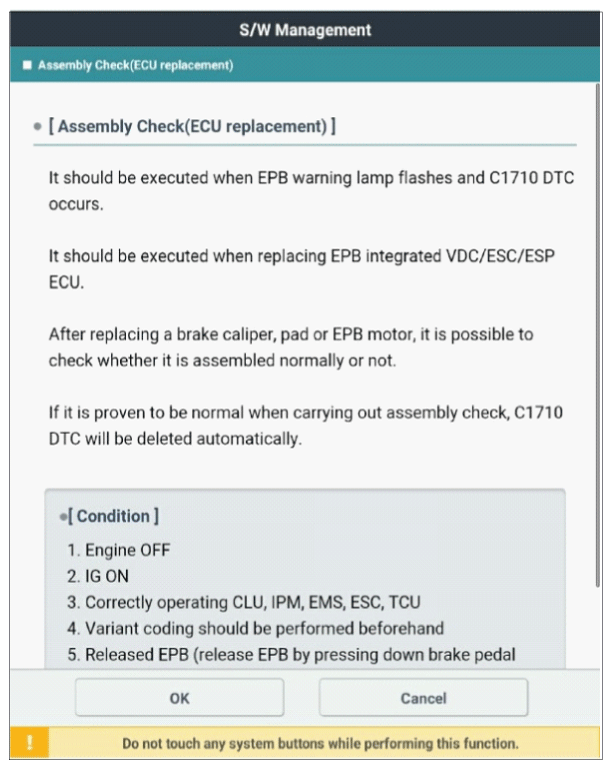

Fig 8: Screen Display - Assembly Check (ECU Replacement)
Courtesy of KIA MOTORS AMERICA, INC.

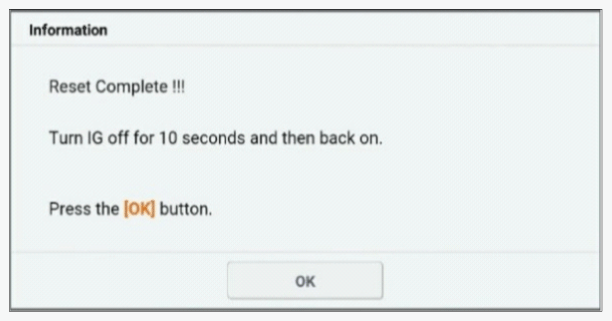

Fig 9: Screen Display - Stage Complete
Courtesy of KIA MOTORS AMERICA, INC.
