[General Supervision]

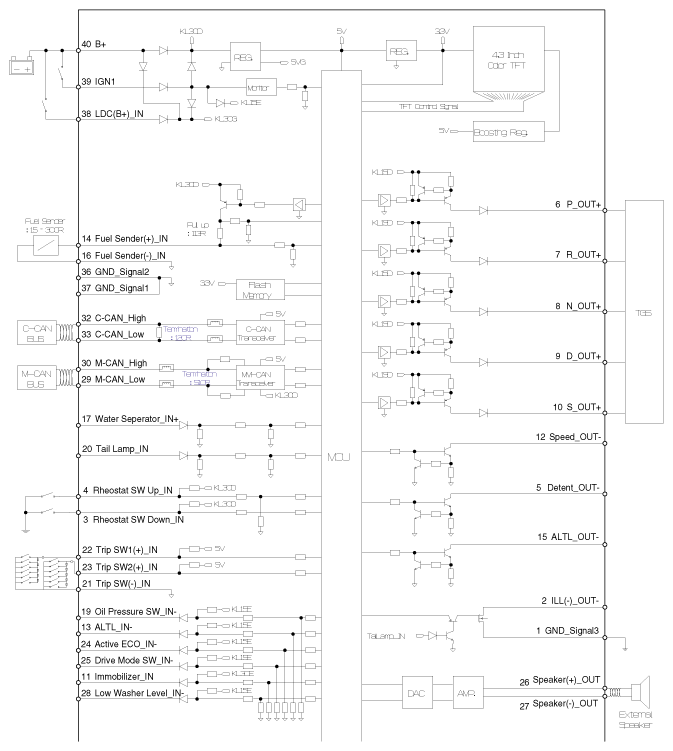

Fig 1: Instrument Cluster Circuit - General Supervision (1 Of 2)
G11827979Courtesy of KIA MOTORS AMERICA, INC.

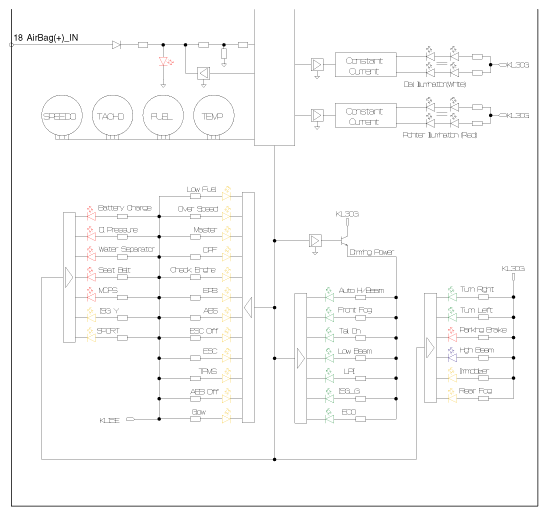

Fig 2: Instrument Cluster Circuit - General Supervision (2 Of 2)
G11827980Courtesy of KIA MOTORS AMERICA, INC.
