CLU Variant Coding

After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.

1. Connect the cable of KDS/GDS to the data link connector on driver side crash pad lower panel, and turn on the KDS/GDS.
2. Select model and "BCM".
3. Select and perform Variant coding mode.

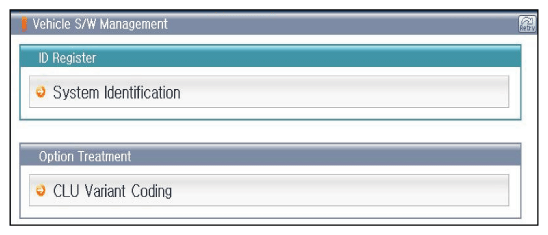

   Fig 1: Screen Display - Vehicle S/W Management

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: Screen Display - CLU Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Screen Display - Enter CLU Coding Code

   Courtesy of KIA MOTORS AMERICA, INC.
4. If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.

Fig 4: Screen Display - Coding Failures

Courtesy of KIA MOTORS AMERICA, INC.
