Components and Components Location: Components

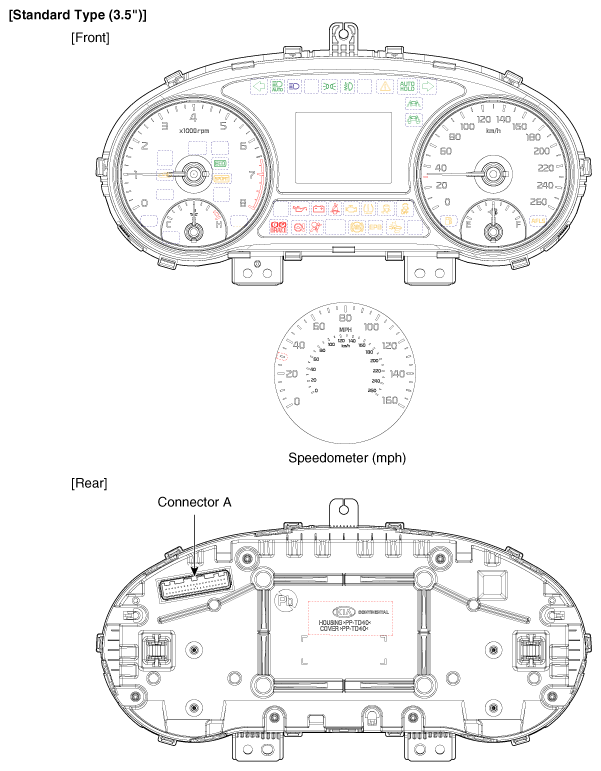

Fig 1: Instrument Cluster - Standard Type
G11827974Courtesy of KIA MOTORS AMERICA, INC.

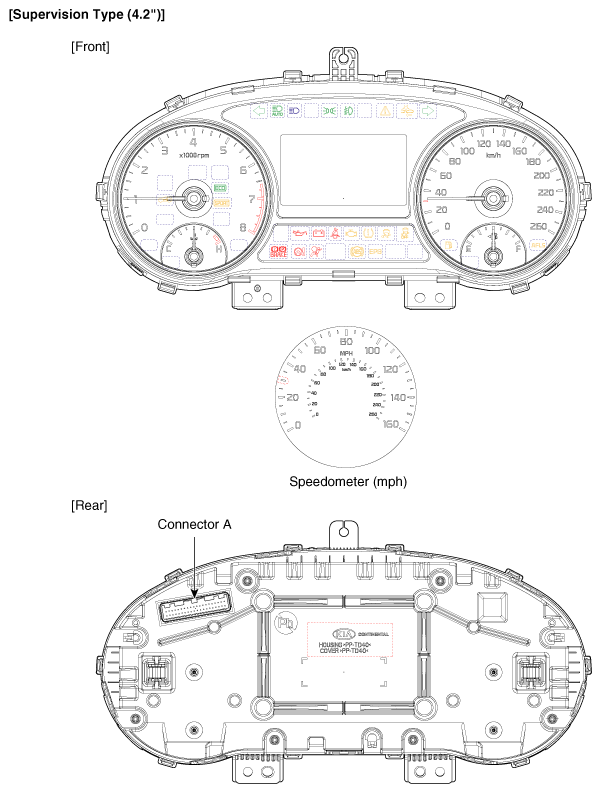

Fig 2: Instrument Cluster - Supervision Type
G11827975Courtesy of KIA MOTORS AMERICA, INC.

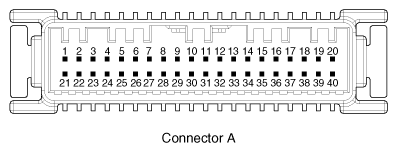

Fig 3: Instrument Cluster Connectors
G11827976Courtesy of KIA MOTORS AMERICA, INC.
