Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

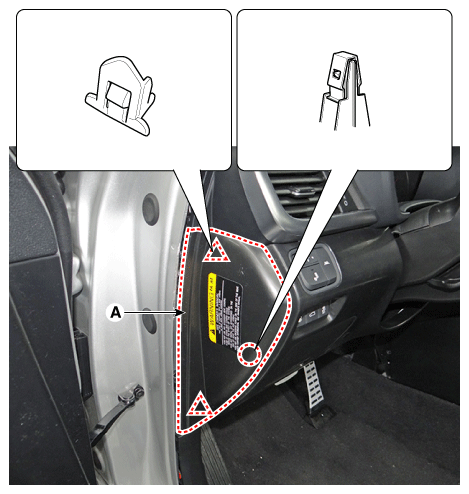

1. Using a remover, remove the crash pad side cover [LH] (A).
   Fig 1: Removing Crash Pad Side Cover (LH) Using Remover

   Courtesy of KIA MOTORS AMERICA, INC.

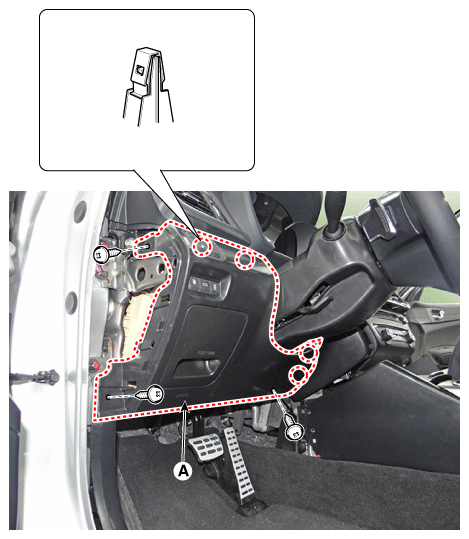

2. Remove the crash pad lower panel (A) after loosening the screw.
   Fig 2: Removing Crash Pad Lower Panel

   Courtesy of KIA MOTORS AMERICA, INC.

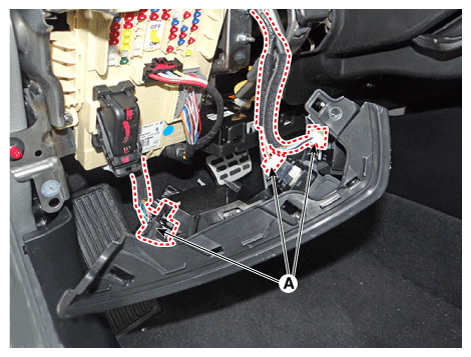

3. Disconnect the crash pad lower panel connector (A).
   Fig 3: Disconnecting Crash Pad Lower Panel Connector

   Courtesy of KIA MOTORS AMERICA, INC.

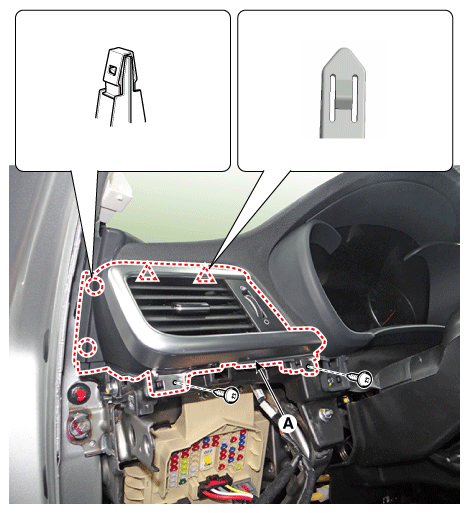

4. Remove the crash pad garnish [LH] (A) after loosening the screw.
   Fig 4: Removing Crash Pad Garnish (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

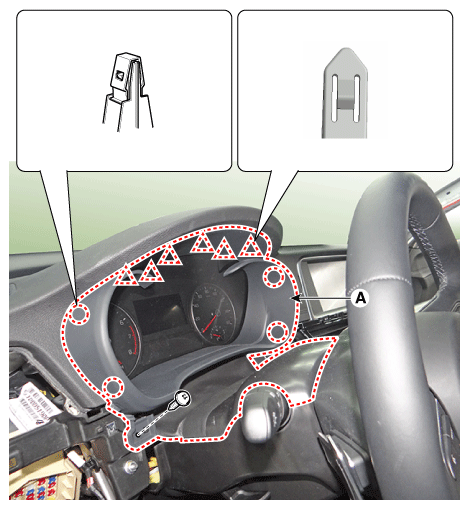

5. Using a remover, remove the cluster fascia panel (A).
   Fig 5: Removing Cluster Fascia Panel Using Remover

   Courtesy of KIA MOTORS AMERICA, INC.
6. Install in the reverse order of removal.

Information

• Make sure the connector are connected in properly.
• Replace any damaged clips.
