[Center Fascia Upper Panel]

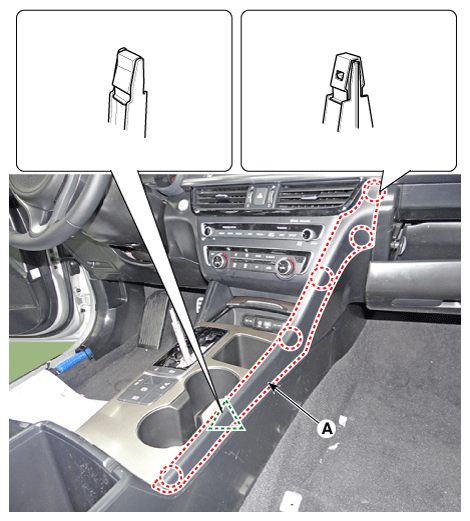

Using a remover, remove the console garnish (A).

Fig 1: Removing Console Garnish Using Remover
Courtesy of KIA MOTORS AMERICA, INC.

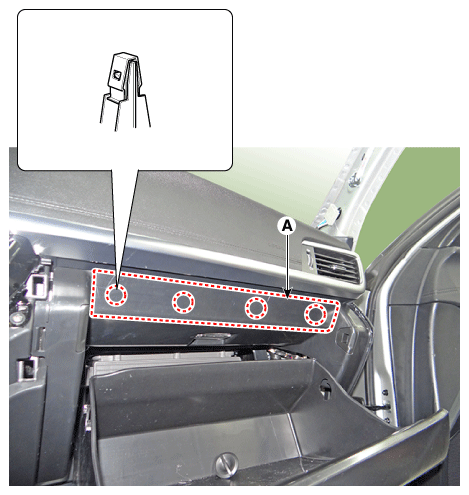

Remove the glove box mounting hole cap (A).

Fig 2: Removing Glove Box Mounting Hole Cap
Courtesy of KIA MOTORS AMERICA, INC.

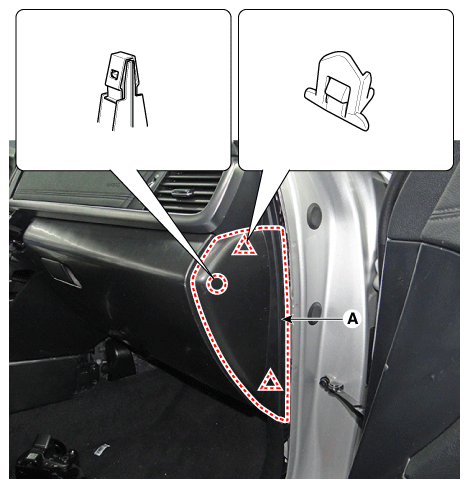

Using a remover, remove the crash pad side cover [RH] (A).

Fig 3: Removing Crash Pad Side Cover (RH)
Courtesy of KIA MOTORS AMERICA, INC.

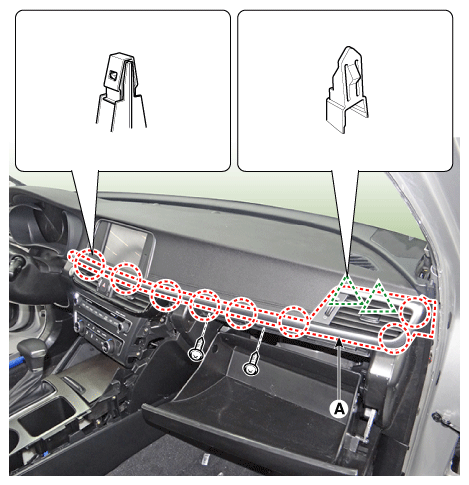

Remove the crash pad garnish [LH] (A).

Fig 4: Removing Crash Pad Garnish (LH)
Courtesy of KIA MOTORS AMERICA, INC.

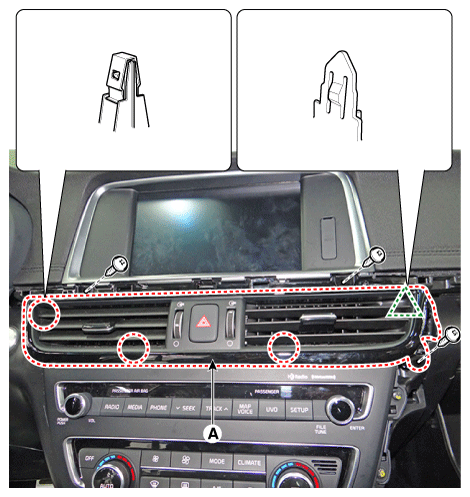

Separate the center fascia panel (A) after loosening the screw.

Fig 5: Separating Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

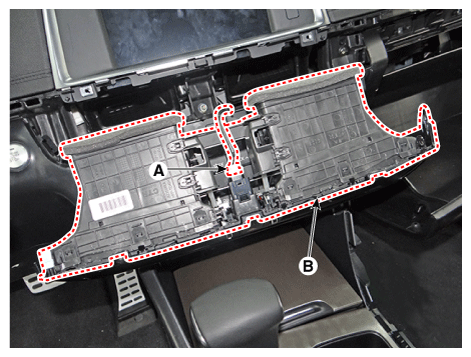

Disconnect the hazard switch connector (A) and then remove the center fascia panel (B).

Fig 6: Removing Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

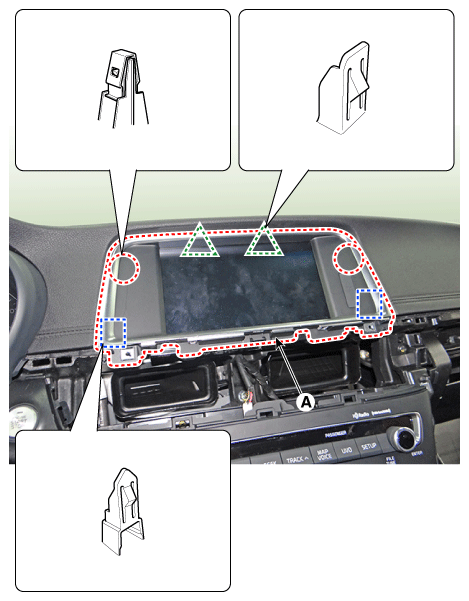

Using a remover, remove the center fascia upper panel (A).

Fig 7: Removing Center Fascia Upper Panel Using Remover
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips.
