Component Location

[LH]

Fig 1: Crash Pad Side Cover Components Location (LH)
G11791626Courtesy of KIA MOTORS AMERICA, INC.

[RH]

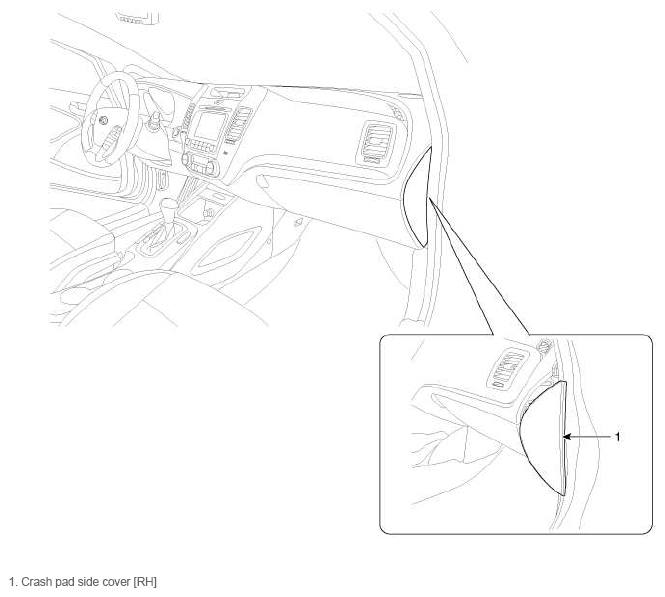

Fig 2: Crash Pad Side Cover Components Location (RH)
G11791627Courtesy of KIA MOTORS AMERICA, INC.
