DTC B2517-00: Internal Tail Lamp Circuit Short To Ground: General Description

Once BCM receives Tail Lamp switch working signal, it sends the signal to SJB by CAN communication. SJB turns on Tail Lamp.

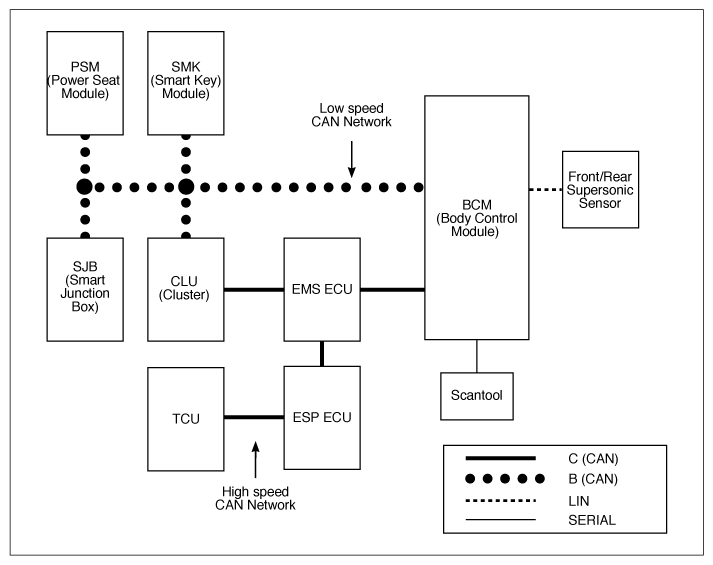

Fig 1: BCM CAN Communication Diagram

Courtesy of KIA MOTORS AMERICA, INC.
