DTC B2512-00: Head Lamp Low RH SCG: General Description

Once BCM receives head lamp low switch working signal, it sends the signal to SJB by CAN communication. SJB turns on head lamp low.

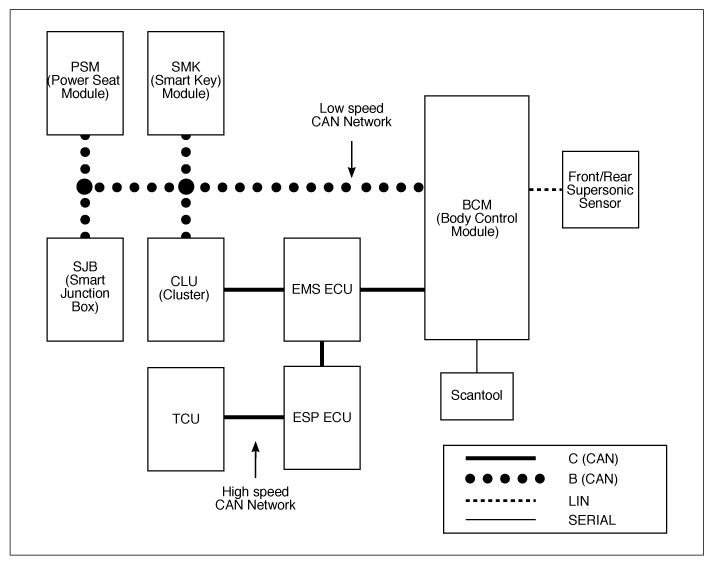

Fig 1: BCM CAN Communication Diagram (Head Lamp Low Switch)

Courtesy of KIA MOTORS AMERICA, INC.
